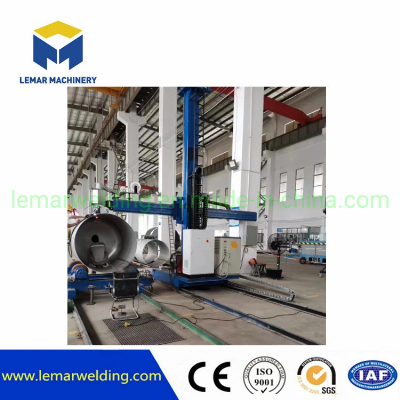

6000*6000mm Automated Sub Arc Welding Manipulator with Tank Turning Rolls

6000*6000mm Automated Sub arc Welding manipulator with Tank turning rollsMachines called sub arc welding manipulators might help you with the submerged arc welding procedure,it moves the tank vessel in accordance with your position. On the other hand, welding manipulators work in both directions. In most cases, using a manipulator with a positioner or a rotator is necessary. While the manipulator would assist the welding equipment in performing the weld, the positioner or rotator moves the workpiece.Specification:  No.ItemUnitHJ60601Equipment size moving type(without rail)2Arm lift strokemm60003Arm extension strokemm60004Arm guide rail widthmm355Standing column guide rail widthmm356Guide wheel seat supporting way Rectangle guide rail, three facet supporting.7Arm extension speedmm/min120-12008Drive way Rack and pinion pair9Speed adjustment way AC frequency stepless adjustment10Arm extension motor powerkw0.5511Arm lifting speedmm/min50012Drive way chain wheel and chain pair13Arm front end load capacitykg30014Control wire lengthm1515Equipment structure type movable and rotary type16Cross precision adjustor strokeUp and down   mm100Left and rightmm10017 cylinder diameter adapted mmΦ500∽Φ600018Cross slide mm±5019Welding speed  100-1000mm/min  Supply scope:  No.Part NameQtyMain composition1HJ6060 type welding machine (moving type)1Mobile trolley walking parts ,column combination, enhance parts, guiding parts, cross regulation parts, etc 2MZ-1000 automatic submerged arc    welding machine1The welding power supply, wire head, control box, welding cables  and control cables and so on3Flux recovery delivery all-in-one      machine1Flux recycling barrel, vortex air pump, solenoid valve, etc4Electrical control components1The main control cabinet + wireless control box5Delivery attached documentation1Product instruction for use, frequency converter operation manual, certificate of approval, shipping list and electrical schematic diagram, etc  Lemar other machines:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
