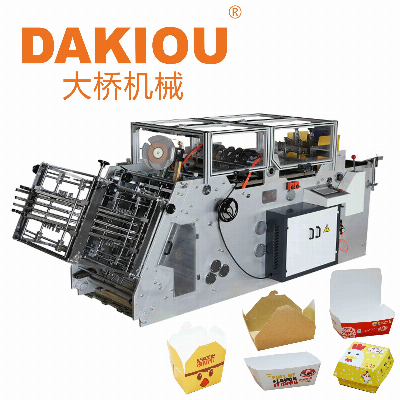

Paper Carton Food Tray Box Making Machine

Product Description HBJ-D is an ideal choice to produce hamburger boxes, French fries box, food tray, lunch box, Chinese noodle box, hot dog box, etc. It adopts micro-computer, PLC, alternating current frequency converter, the vacuum-sucking paper feeding, auto gluing, automatic paper tape counting, and chain drive. All of these main parts and electric control system adopts imported brand to guarantee steady working, precise positioning, smooth running, safety and reliability operation. It can make more than 10 types boxes.  Product DescriptionTechnical Specification:    TypeHBJ-D800HBJ-D1200HBJ-D2000Production capacity50-180 pcs/min80-320pcs/min100-300 pcs/minSuitable Material:200-600g/m2 card paper,PE coated paper, kraft paper, corrugated paperLength:L100-450mm,degree:5°-40° L100-450mm,degree:5°-40°L100-450mm, degree:5°-40°Width:100-600mmW100-400mmB100-600mmHight:15-200mmH15-200mmH15-200mmTotal Power:5KW6.25KW3KWTotal Weight:1.8T2.8T2.2TOverall Dimension:3600 x1400 x 1700 mm3600 x 1850 x 1700 mm2300 x2200 x 2100 mmpower source:380V /220V  50HZ380V 50HZ380V 50HZ    Main Features1.The chain drive is adopted in the machine to ensure the smooth running, and endurable structure. Each part is separated to reduce noise and workload, as well as to increase the stability.2.Time of paper feeding is adjusted by cam. Simply operating, reducing failure rate.3.Automatic gluing systems controlled by reduce motor from Taiwan. Gluing point is mad.4.Every part of forming and collecting system can be adjusted according to the size of mold. The whole collection system can be opened to change mold and install the forming parts conveniently.5.It adapts paper tape counting equipment to count product quickly and accurately, and to be readjusted.  Machine details1.paper card feeder2.paper card delivery3.paper card glue station4.paper card forming station5.paper box stacking stationFAQ 1.Q:Where is your factory? How can I get there? A: We are located in Ruian City Wenzhou, Zhejiang Province.To Wenzhou Longwan airport by Air, from Shanghai is about 45mins, from Guangzhou is about 1hr 50mins and from Hongkong is about 2hrs. We will pick up you in the airport. 2.Q:Can your machine be customized?A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes, color, logo, package and so on. 3.Q :What's the OLD(order lead time)? A: For our standard model machines is about 30days after receiving your deposit.4. Q: How about your package?A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by FCL(full container loading) we might use the wooden pallet with plastic film wrapping, without plywood case.    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
