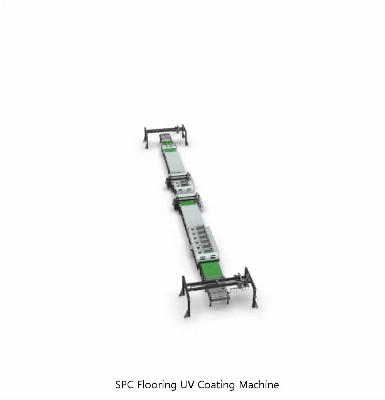

PVC Production Line, Starsplas Full Automatic 5lamps UV Coating Machine

 Product Description01Full-automatic CoatingThe whole line is fully automatic production, including the feeding of the incoming plate, finished product feeding and UV oil feeding are automated 02 UV & IR Heating with high performanceProduction line adopts UV and IR infrared drying 03 Single roller coating with high precisionTUV oiling adopts special single roller oiling machine, which has higher oiling accuracy04 Automatic VOC ControlCurrent production line upgrade, can also be equipped with VOC volatile organic compounds waste removal environmental protection system, effectively control VOC material exposure.System CompositionTechnical Specification Dust CollectorLength2.5MPower2.42KWWire dia.3*2.5+1*1.5mm2OthersSisal hemp brush roller, front & rear with E-static bar  4M IR HeaterLength4MPower15.25KWWire dia.3*16+1*10mm2OthersSUS net belt, hot wind circulating   Single Roller Coater  (1st Layer)Length2.5MPower6.75KWWire dia.3*4+1*2.5mm2Weight2000KGWorking width0-1320mmWorking thickness0.15-80mmMin. length300mmConveying speed0-20m/minCoating specification1450mm*∮250mmUniform roller1450mm*∮164mmControl cabinet2500mm*2700mm*1700mm  Three Lamps UV DryerLength2.5MPower32.05KWWire dia.3*16+1*10mm2Weight1700KGWorking width0-1320mmWorking thickness3-80mmMin. length300mmConveying speed0-20m/minSize(Three-lamp):2000mm*1850mm*1750mmUV Lamp13KW*1490mmWorking time of lamp800-1000H(except for the damage caused by human factors)  Heating& Even UnitLength4MPower15.25KWWire dia.3*10+1*6mm2Weight700KGOthersConveying is by SUS net belt, heating by 1.5KW Roast tube.  Two Meters Belt ConveyorLength2MPower0.4KWWire dia.4*1.5mm2Weight500KGWorking width0-1320mmWorking thickness3-80mmConveying speed0-20m/minSize:2000mm*1600mm*800mm  Five Lamps UV DryerLength3.5MPower53.3KWWire dia.3*25+1*16mm2Weight2200KGWorking width0-1320mmWorking thickness3-80mmMin. length300mmConveying speed0-20m/minSize(Five-lamp):3500mm*1850mm*1750mmUV Lamp13KW*1490mmWorking time of lamp800-1000H(except for the damage caused by human factors)  Shear cutterCutting Guillotine cuttingCutting Max width 1300mmCutting Max thickness3-8mmLength counterIncludedTotal installation power5.5KWWeight800 Kg   Company ProfileSTARS UNION EQUIPMENT TECHNOLOGY (JIANGSU ) CO., LTD. We are a fully automatic equipment research and development company focusing on green building materials.The company is committed to providing industry 4.0 automation production solutions in accordance with European and American standards.THE MAIN PRODUCTS ARE THREE PARTSProduct 1:Furniture sheet factory production equipment, including automatic mixing system, extrusion line, coating equipment, slotting equipment, film equipment and carton packaging equipment.Product 2:Furniture plate automatic software control system, including intelligent warehouse WMS vertical warehouse system, AGV intelligent forklift scheduling system, MES production management system, MMR intelligent equipment monitoring system, the above software will be deployed locally through the edge computing law can choose cloud deployment to achieve data synchronization of the production plant. The company has obtained the system integrator qualification authorized by Rockwell USA.Product 3:Furniture plate manipulator and automation equipment, including manipulator handling, unpacking, palletizing and other processes, in the flexible operation of the company is Germany KUKA authorized system partner.Business MapOur service scope covers Europe, America, Southeast Asia, India and other countries and regions. Starsplas is an authorized system integrator for Rockwell in the US and a partner for KUKA robotic systems in Germany. We are the first company in the industry to establish fully automated production solutions in the US and Europe, and the first company in the industry to successfully build a factory in the US, providing valuable experience to other partners in the inCertificationsFAQ  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
