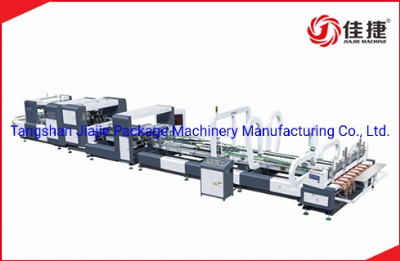

Automatic High Speed Intelligent Box Packing Machine Folder Gluer and Stitcher

JHXDX Automatic Folder Gluer and Stitcher Machine SpecificationsModelJHXDX-2600Max. Carton Size900×2600mmMin. Carton Size300×850mmInstallation Area3500×16000mmTotal Power 23kwPower SupplyThree Phase 380VFeatures Of the Machine: Key PointsUnique separate sheet separation and registration part which can eliminate the fish tail phenomenon effectively.Gluing, stitching, glue + stitching can be set through one button press which is very convenient for the operation The stitcher cutting knife and nail stand adopts imported hard alloy which ensures long working life span Adjustable single or double stitch, in compliant with international standard 17 or 18 size nail.The imported Yaskawa brand of four-servo motors with accurate features, it can reduce the transmission devices and makes trouble free.Using motor to adjust the synchronous belts, easy operation and reduce change time.Swing style stitching head, synchronous belts and stitching head moving synchronously, it can achieve stitching while sheet moving, fast speed and high efficiency.Features by Parts: Feeding Unit:Adopt high quality rubber vacuum belt, stocking and automatic input to ensure the efficiency of feeding.Special design makes the adjustment simply, quickly and precisely. The side regulation, paper feed baffle and belt are separately operated parts, which is easy to change the size of carton.Regulation Device:Sheet separation and registration unit makes fast order change and neat folding and gluing.Swing style stitching head:Less power,faster speed and better stability,effectively improving the product quality.Intelligent auto nail delivery deviceElectrical control system makes nail delivery more accurate.Nail DepartmentLow malfunction rate, adopting vibration absorbing stand.Electrical PartsScientific and reasonable mechanical structure, reliable quality electrical elements makes the machine free of trouble. Yaskawa servo motor control system makes motion precisely.Intermediate relays adopt French Schneider and photoelectric switch adopt Ormon brand.Main Configurations: Electric Part: NameBrandModelFrequency converterDelta3.7KW/2.2KWRelayOmron Thermal relaySchneider0.63-1AContactorFrench SchneiderCJX2 1201CJX21210PhotoelectricOmronE3Z-T61-DE3Z-T61-LPhotoelectricOmronE3F3-D11EncoderOmronE6B2-CWZ6C 360P/RPLCChinaXCL-E8X8YTTouch screenHitech190mmServo motorYaskawa /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
