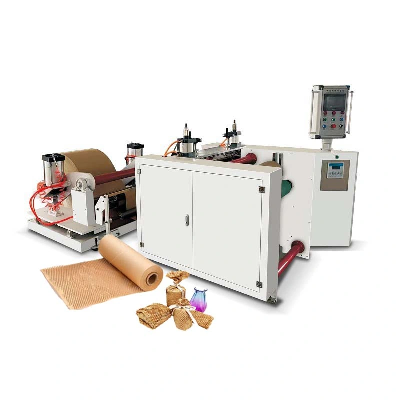

Automatic Honeycomb Paper Diecutting Embossing and Making Machine

RYD-520 Automatic Honeycomb Paper Forming Machine Usage::This machine is used for produce Honeycomb Paper, such paper is eco-friendly and cost effective alternative for plastic bubble wrap cushioning. Honeycomb Paper is easy to stretch,more soft and flexible,provide cushion protect without surface scratch.Finished products from this machine can be used to pack fruits,flowers, ceramics,glassware,etc.  Main ParametersMax. work width 500mmMax. Unwind Diameter1200mmMax. Rewind Diameter250mm.Paper Core Size76mm/38mm.Machine speed120m/min.Tension setting range0-100N.m.Total power of the whole machine8KWMachine weight1100kg.Machine size 2900 *1900*1500mmMachine ConfigurationUnwinding unit:Roll out diameter Φ1200mmUnwind tension control: 10kg magnetic powder, Automatic tension controlLoading and unloading: 3 inch air shaft, pneumatic Edge correction :AutomaticallyRewind Unit:Single station rewind diameter 250mm, 2.2KW inverter motorTension display: PLC controlLoading way: 1.5-inch air shaft (2 bars)Material change by manualCutting UnitUpper cutting roller: 142x520mmDown cutting roller: 144x520mm  Main motor: 4kw 1 setCutting mould life time: 600,000-1,000,000 meter (Can polish 3 times, every time need RMB1500, upper cutting roller price RMB24000/setMain drive:Structure: upper cutting roller + down cutting rollerMain panelThe drive mode is the synchronous belt driveGuide roller: aluminum guide roller brown color dynamic balanceAuxiliary unit:Main machine pressure: air cylinder with manual fine adjustmentTool boxPLC control7-inch touch screenMachine photos/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
