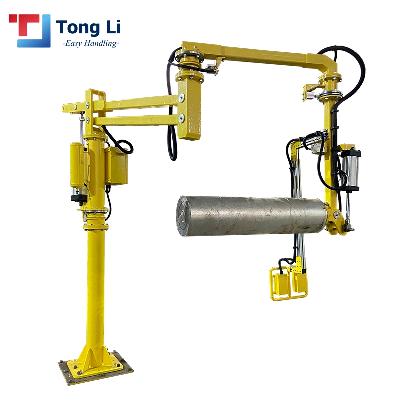

Simply Assembled Pneumatic Lifting Manipulator for Reel Handling

Power Assisted Manipular for Handing, Lifting, Stacking  The fixed power assisted manipulator is composed of rigid arm. When there is torsion resistance, the power assisted manipulator is used, such as the workpiece is irregular or the workpiece needs to be overturned tocomplete stacking, loading and unloading. The power assisted manipulator is easy, safe and stable.  ModelTLJXS-50TLJXS-100TLJXS-200TLJXS-300TLJXS-400Load-Bearing50KG100KG200KG300KG400KGWorking Radius L12500mm2500mm2500mm2300mm2300mmLifting Height H2500-2000mm500-2000mm500-2000mm500-2000mm500-2000mmAir Pressure0.5-0.8Mpa0.5-0.8Mpa0.5-0.8Mpa0.5-0.8Mpa0.5-0.8MpaRotation Angle A330°330°330°330°330°Rotation Angle B300°300°300°300°300°Rotation Angle C360°360°360°360°360°Our products are widely used in Glass Industry, Packaging, Paper and Printing Industry, Building Industry, Machinery Manufacturing, Foundry Industry, Chemical and Pharmaceutical Industries, Auto Parts Industry, Automotive Assembly and many other industries. It can handle workpieces and products of various shapes and weights. For example, bags, carton boxes, chemical barrels, oil drums, large rolls of plastic rolls, glass, plates, air conditioners, condensers, compressors, metal castings, molds, sand cores, car tires, front wall, skylights, Dashboard, cylinder head, etc. The fixtures of each manipulator are specially designed and manufactured according to the customer's specific conditions.Provide clamp customization services to meet the needs of all industries!   Product Classification    About Us  Jiangyin Tongli Industrial co., LTD is a manufacturing enterprise specialized in the automation research and development, design, production, sales and service of storage and handling equipment. Since its establishment, the company has been committed to solving the storage and handling problems of various materials, and providing corresponding perfect and professional solutions for the complex and changeable storage and handling requirements. It also provides effective and competitive solutions to customer budgets.  FAQQ: Are you trading company or manufacturer ?A: We are factory for OEM Manipulator.Q: How long is your delivery time?A: Generally it is 20 days after confirming the technical plan.Q: What about payment terms ? A: Usually 30% T/T in advance,70% Balance before shipping out goods against B/L.Q: What service we provide?A: Offer Radius ,lifting Height,Max /Min Load weight,and picture of operation conditions      Guarantee And After-Sale Service     One Year Guarantee For Whole Machine     24 Hours Technical Support By E-mail/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
