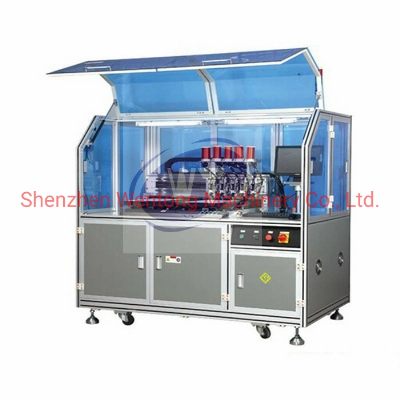

Smart Contactless Cards Antenna Implanting Machine Antenna Embedding Machine

Product DescriptionThis machine adopts PC program control, wide LCD display and operation. Firstly, the special PC software is used to draw and compile the path. Then, the x-axis and y-axis servo system is driven by the dual axis control card. According to the pre programmed path, the line is automatically moved and buried. The embedded wire adopts imported ultrasonic technology. The whole process is controlled by program and runs automatically. The operation is simple, stable and reliable. Material layout has 3x8, 4x8, 5x5 flexible selection.Detailed Photos1. Advanced ultrasonic wire embedding technology in China. 2. Machine runs stable; Antennas are well distributed with uniform spacing.3...Servo system ensures accurate location. 4. Designed for wire layer of different layouts and various shapes of antenna.5. Materials are loaded using dowel pin and vacuum absorbed, easy to adjust.6. PC control with CAD software for easy adjustment. 7. The pulse, voltage, current and time of bonding are digitization, It' accurate and easy to adjust.8. CPU can remember several sets of layout data and each set can be called directly.9. Advanced high-frequency inverter welding technology is used for high-current instant bonding.10. Materials are loaded using the dowel pin. 11. It can finish winding and bonding which need to materials locating only once.  Product ParametersPower SupplyAC 380V/50 HZControl MethodPC + servo systemTotal Power3.0KWOperators1 personAir Supply6kg/cm²Distance Between LinesThe min is not less than 0.2mmAir Consumption150L / minWire Diameterφ0.1~φ0.15mmG.W1000kgSheet0.2 ~ 0.4mm PVC, ABS, PET, PETG, etcOutputAbout 400 coils / head / hour (winding MF1 standard coil), the more the number of buried wire, the fasterApplicable IC chip typePhilips Mifare one,ATMET Temic T5557,S50 , ST,TK,LEGIC,EM...DimensionsL1700×W1100×H1600mm Finished Cards Sample /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
