Boom Stroke 3000mm Column Stroke 3000mm Rotary Welding Manipulators Machine

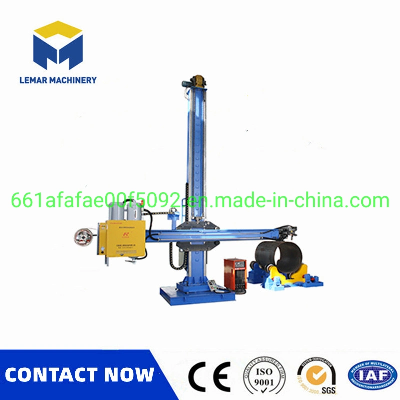

Boom Stroke 3000mm Column Stroke 3000mm Rotary Welding Manipulators MachineColumn and boom Cross welding manipulator can perform circumferential seam welding on metal containers and metal welded structural parts.Widely used in wind power equipment, pressure vessel, petrochemical, pipeline, steel structure, boiler, shipbuilding, surfacing repair and many other industries.Specification of Column and boom welding manipulator:ModelHJ2*2HJ3*4HJ4*4HJ4*5HJ5*6HJ8*6Effective stroke of the boom lift2000mm3000mm4000mm4000mm5000mm8000Effective stroke of the horizontal arm telescopic2000mm4000mm4000mm5000mm6000mm6000mmPipe diameter(mm)500-2000700-30001000-40001000-40001000-50001000-8000Column rotation angle±180° Manual±180°±180°±180°±180°±180°Boom lift speed0.3m/min1m/min1m/min1m/min1m/min0.9m/minBoom extension speed0.12-1.2m/minTrolley forward/backward speed1.5m/min3m/min3m/min3m/min3m/min3m/minCenter distance of trolley guide rail900mm1500mm1780mm1780mm1780mm2308mm  Technical features of the Automatic TIG MIG SAW Welding manipulator:1. The Lemar welding manipulator adopts a highly integrated valve block and a large flow diameter, so the loss of the entire pressure system is relatively small in long-term use;2. Imported components are selected, and the tightness and sealing performance of the welding operation frame are relatively high3.The welding manipulator adopts a cycloid gear motor and a combination of low speed, which effectively realizes the operation of infinitely variable speed;4. The guide rail is made of 45# steel. After aging treatment, planing, grinding and other processing methods, the guide rail is prevented from being deformed, its accuracy is improved, and its service life is increased.Working principle:1) Lifting of telescopic arm and platformThe platform lift of the welding manipulator is mostly constant speed or fast and slow speeds;The lifting and lowering of the telescopic arm are mostly fast and slow speed or infinitely variable speed, and the speed is between 0.5~2m/min2)Rotation of boomThe slewing motion of the arm has two types of drive, manual and constant-speed electric. The former is mostly used for small manipulators, and the latter is mostly used for large and medium-sized manipulators.The rotation speed is generally 0.6r/min, and there is a manual locking device in the rotation system3)Telescopic boomThe telescopic movement of the telescopic arm is mostly driven by a DC motor, and can also be driven by a DC or AC servo motorHow to maintain the welding manipulator:The welding manipulator is composed of columns, beams, slewing mechanisms, trolleys and other components.As a professional manufacturer of welding manipulator we need to maintain it when using it, so that the life of the longitudinal seam welding manipulator can help:1. Check the lifting chain, anti-fall roller, column roller, beam roller and other key moving parts of the welding manipulator once a month for wear cleaning and matching clearance. If problems are found, adjust, repair and replace them in time, and lift the wearing parts such as chains and connecting pins. It must be dismantled and inspected once a year and dealt with in time.2. Regularly check the wiring parts of the power wiring of the welding manipulator. Terminals on the input side, output side, etc., as well as the connection parts of external wiring.3. Check whether the wiring screws of the internal wiring and wiring parts of the welding operation frame are loose. When rusted, remove the rust to make the contact conductive.4. Check whether the welding operation frame and the welding positioner or the electrical control system of the welding roller frame are properly connected, and the places that need to be replaced need to be replaced in time.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
