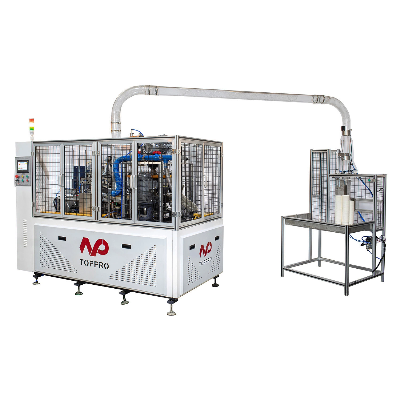

Automatic Single/Double PE/ Water Based Paint Paper Cup Forming Machine

Machine Description:LF-90 MID-speed paper cup forming machine is a multi station high-speed automatic machine producing both single and double PE coated drink cups, ice cream cups through continuous process of automatic paper  feeding, sealing, oil injection, bottom cutting, heating, knurling, curling and stacking. The machine adopting hot air system, PLC control, servo motor driving, full-automatic failure warning, counting, detection, stopping, etc.Name Middle Speed Paper Cup MachineHS Code8441309000Model LF-90The machine includes: Finished cup Collect SystemPaper cup SizeTOP DIAMETER=70mm-95mmBOTTOM DIAMETER=48mm-63mmCUP HEIGHT=46mm-100mmBOTTOM DEPTH =5mm-10mmRaw Material One-side or two-side PE coated paper(Singe PE or Double PE coated paper)Speed90-100pcs/minSpeed of 20 hours stable running per daySuitable paper weight190-350gsmVoltage supply 380v50hz 3-phase*If user's voltage supply is different, please inform us in advance.Working Air SourceAir pressure 0.5-0.8Mpa, 0.4m3/minUser should buy Air CompressorGeneral power9kwNet weight 2300kgsMeasurement (mm)2300*1250*1800Cup Side Sealing Ultrasonic sealingWe can customize machine and mold according to customer's requirement.Machine advantage: 1. Machine Main part uses the Geneva open cam (as the picture New on left), instead of old dividing box transmission, makes driving more accurate, faster, and more reliable stability2. Machine bottom is made by CNC machining, shaped in one-piece, thethickness is more than others' and heavier. It can improve the precision for each part, also help to stable the open cam long time running. The table also to be one piece, and completely closed design to make sure material can't go to driving system.3. he sliding block is imported from Taiwan, instead of the old linear bearing design, this block has a long lifetime, and high precision.  4. The bottom paper feeding is adopted Two channel sending system, first use stepper motor transport, second adopt stepper motor precision feeding, to ensure accuracy and avoid waste. For old design, will have high waste also will produce much scraps of paper during production.5. Bottom heaters we add the Hot air heating system, to form cup bottom at a short time and high quality.6.This machine has automatic lubrication system, ensure the machine to keep long time running stably. The design of the oil pipe, can lubricate each point more accurately. We also add filter screen to keep the lifetime of oil core. Also this machine has oil pump and two valves, one valve for controlling the oil quantity, one is convenient to change oil. 7. The main motor with brake, can set the testing stop positioning, debugging positioning to be higher precision, also to ensure the safety of debugging person.  8. Imported electrical parts and PLC controlling, easy operation on touch screen, makes machine more intelligent.   D.OUR OTHER RELATED MACHINEwe also have middle speed paper cup machine,high speed paper cup machine,paper cup handle machine,paper bowl machine,paper cup die cutting machine,paper cup printing machine,paper plate machine etc.can provide you a full paper cup production line!Packaging & ShippingE.PACKAGE DETAILSour paper cup machine all package with strong woodencase,and also will send you a tool box,english manual and electric diagram with machine,also will send you a CD to teach you how to operate machine.  Our ServicesF.AFTER SERVICEE1. one year warranty2.24 hours after service for technical support3.provide free training  Company InformationG.FACTORY VIEWFAQQ1.are you factory or trading company?we are machinery factory and has 20 years experience. Q2.where is your factory and how to get there? our factory location is 7# yongding road,songjiadai industrial park,feiyun town,ruian city,zhejiang province.china you can by plane from your country to wenzhou city airport,then we will pick you up by car. Q3.what certification do you have? we have CE,BV and SGS certification. Q4.what is your delivery time? Automatic High speed Paper Cup Making Machine Price need 25 -30 days in normal,if your order is urgent,we can discuss about that.  If you are interested in our paepr cup machine prodcution line, pls do not hesitate to contact me!/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
