CE High Quality Dryer Cylinder

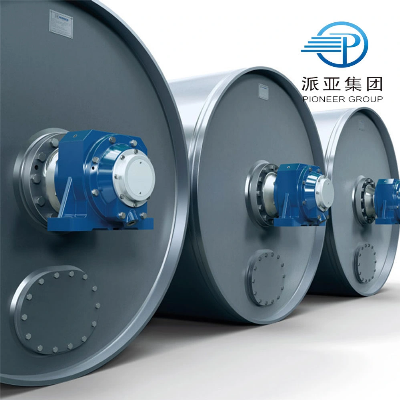

Paper Machine Dryer CylinderDrying cylinders for papermaking machinery can produce various specifications of drying cylinders with a diameter of 800MM-4000MM. The material is made of wear-resistant alloy cast iron with high-precision grinding technology. Passed ISO9001-2000 quality management system certification, CE EU product certification, and on-site inspection by SGS, an internationally recognized authority.  DiameterΦ1500Φ1800Φ2000MaterialHT250-HT350HT250-HT350HT250-HT350Design Pressure (MPa)0.3-1.10.3-1.10.3-1.1Hardness(HB)190-240190-240190-240Face Length(mm)1450-100001450-100001450-8000Working Speed (m/min)500-1200500-1200500-1200Roughness(Ra)0.1-0.40.1-0.40.1-0.4DiameterΦ2500Φ3000Φ3800MaterialHT250-HT350HT350HT350Design Pressure (MPa)0.3-1.10.3-1.10.3-1.1Hardness(HB)220-260190-240190-240Face Length(mm)1450-80001450-80001450-8000Working Speed (m/min)500-1200500-1200500-12500Roughness(Ra)0.1-0.40.1-0.40.1-0.4FAQ:Q:Can you make customized products? A:Yes, we mainly make customized products. We develop and produce products according to the drawings provided by customers. Q:How does your company guarantee product quality? A:First of all, we will have corresponding inspections after each process. For the final products, we will also conduct 100% full inspections according to customer requirements and international standards; Then, we have advanced and complete testing equipment in the industry: spectrum analyzer, metallographic microscope, universal tensile testing machine, low temperature impact testing machine, X-ray flaw detector, magnetic particle flaw detector, ultrasonic flaw detector, hydraulic test, etc. The above-mentioned equipment can fully guarantee to provide customers with high-precision finished castings, and at the same time can ensure that customers can meet all-round testing requirements for materials, such as physical and chemical properties, non-destructive testing, and high-precision geometric size testing.    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
