Laminating Honeycomb Board Machinery for Paper Pallet

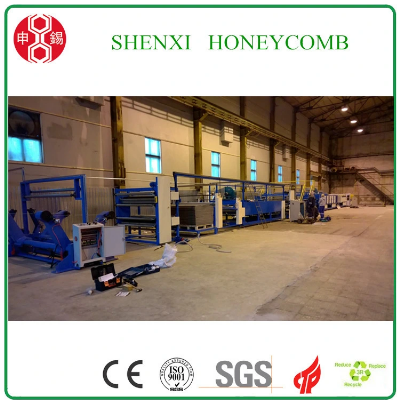

Product Description1.Production introductionWuxi Shenxi Honeycomb Machinery Factory, supplies honeycomb paperboard lamination line. Honeycomb lamination line makes the honeycomb paperboard from 8 to 100mm thickness automatically.  It can make 5000-8000 m2/ shift.   2.Features:2.1 The paperboard cutting unit uses two servo motors & ball screw system to make it synchronized and cutting. Tolerance within 2mm/ m.2.2  Belt press unit, worm screws adjust the height of upper press unit continuously and stable. The pressure can be adjusted by springs continuously.2.3  Hot air circulation in the oven, increase the thermal efficiency. 2.4  Safety control system according to CE regulations.2.5  Paper will avoid the gluing roller while machine stops, easy to do the adjustment when machine's on. 2.6 Apply glue on paper or honeycomb, both available.2.7 Heating: steam, electricity, Hot oil all available.  3.Process of honeycomb makingPaper unwind---honeycomb expand---glue applying---- Laminate and belt press---hot    board heat----Belt press again---Board oven--- cold press----trim (optional)--- cross cut.  4.Technical data No.ItemHF(B)-1300  HF(B)-1450HF(B)-16001Thickness of honeycomb paperboard8-100mm2Maximum width of paperboard (mm)1300145016003Cardboard cutting precision+-2mm4Length of honeycomb paperboard(after cutting)>=500mm5Applicable paper180-420gms cardboardpaper or Kraft paper6Layer of face paper16Maximum designing speed20m/min7The actual production speed6-12m/min.(According to the paper dry degree,Glue quality,paper core thickness,Local humidity and other factors to change )8Heating drying methodelectrical heating9Total motor power30KW10Electric heating power80KW11Installation power120kw12Man power313Layout45000X4000X2500mm/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
