Ultrasonic Automatic Paper Cup Forming Machine Making Machine

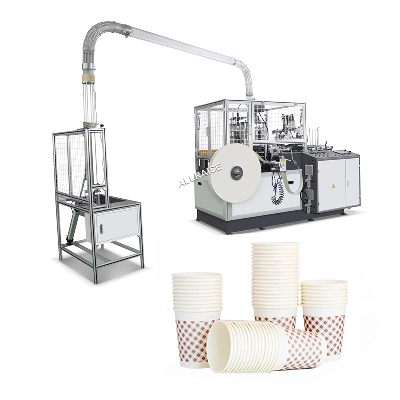

Product DescriptionUltrasonic Automatic Paper Cup Forming Machine Making machineORZBJ-120 Ultrasonic Automatic Paper Cup Forming Machine uses a cylindrical indexing cam with only one aluminum plate to complete the cup making structure, which makes the machine faster and smaller. It has photoelectric detection, fault alarm, counting and other functions. Through automatic transmission, paper feeding, sealing (adhesive cup type), oiling, punching, bottom turning, heating, knurling, crimping, cup collection and other continuous processes, it is to improve the production of beverage cups, tea cups, coffee cups, and advertisements. Ideal equipment for paper cups and tasting cups, with a production capacity of 70-90 pcs/min.  Product Parameters  Model OR-RN-ZBJ-120 Cup size 1.5-16oz Material 150-380gsm single PE coated paper&double coated PE paper;PLA coated paper Speed 70-90 pcs/min Voltage 220V50HZ/380V50HZ or customized Power supply 8KW Air supply 0.6Mpa (running consumption 0.4Nm3/min) Weight 2500kgs Dimension 2250*1240*1900mm product features ORZBJ-120 High Speed Machine to Make Disposable Paper Cup use table style, To separate mould system from transmit system, the transmission parts are set inside of machine body which under the table.   The machine are combined with   1.Whole body structure under automatic spray lubrication system;2.Vertical shaft transmission system;3.Open cam system ;4.Gear system. All molds are set-up the table, which are easy for operation.5.Multiple paper feeding. Three times paper feeding system, multiple mediation, to avoid unevenness on both sides of the paper cup.6.Slotted wheel-make the machine inside-connection more tightly, and it is not easy to loosen during the operation of the machine.7.Single plate bottom punching and cup route offset the problem of paper jam and flip bottom. Make the machine more perfect and improve production capacity .8.Automatic time control of oil lubrication for full machine, avoid the trouble of manual oil lubricating, make the machinerunning more stable.9.Open cam running system replace the connecting rod system to reduce malfunction rate, increase production speed.10.Open cam, slotted wheel makes the machine running more stable and increase machine wear-resistant at high speed.11.According to other models. RN-ZBJ-120 body use square steel, body weight 2500kgs, machine running more stable under high speed.12.Taiwan brand reducer, NSK bearing. Standardized production of parts, strong versatility, good interchangeability, easy to maintenance.  product detail finish product detail FAQ Don't worry your TT payment,we do make the shipment as T/C,B/L for your reference!Q: Why don't person reply to me?A: Our person is 24hours on-line. If nobody reply you , maybe he has other businesses temporarily. So please leave yourrequirements on e-mail or chat tool, we will reply you as soon as possible.Q: Can you guarantee your quality?A:Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principleall the time. You can be assured on our production completely.Q: How do you make your price?A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we aremanufacture. You will get lower.Machine Details/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
