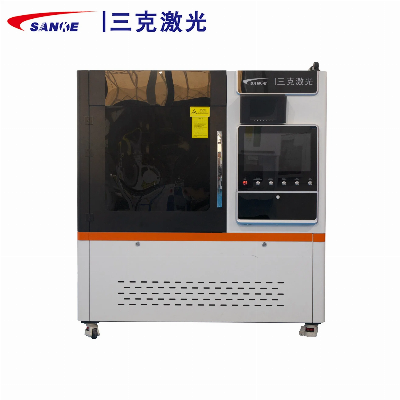

Product DescriptionModelSK-LC150SK-LC300SK-LC450Pulse Width0.05~20msRepeat Frequency1-3000Hz1.6mm PCD Cutting Speed≥120mm/min≥240mm/min2.0mm PCD Cutting Speed≥70mm/min≥180mm/minKerf Width≤0.1mmHeat Influence Range≤0.05mmPCD Max. thickness of single surface cutting3mm5mmPCD Max. thickness of double-sided cutting5mm8mmPower SupplyAC220V±10%/1PH/50HzMachine Size(L*W*H)1550*950*1750mmMachine Weight300KG Products ApplicationsThis machine mainly performs laser cutting on productswith high requirements on the quality of cutting surfacessuch as super-hard material tool composite sheets, ceramics, single crystals, etc., within CCD coaxial monitor. It consists of a precision three-axis motion tableand an industrial control computer system. The new version of the software system is developed by itself, andit can be automatically programmed with CAD graphics.The cutting surface is smooth, the clamping isconvenient.Widely used in abrasives, cutting tools and otherindustries. Product Advantages 1.Good beam quality, high processing efficiency, the cutting slits are fine. 2.Good verticality, and the perpendicularity of the cutting surface is less than 1.5°. 3.The cutting slit is narrow,high yield, the edge of straight cutting slit, small thermal damage . Application MaterialsIt is suitable for high efficient cutting and precisionmachining of PCD drawing die, PCD laminate, CVD,various PCBN, single crystal diamond, ceramics, siliconwafer, cemented carbide, thin steel plate and othermaterials.https://3klaser.en.made-in-china.com/contact-info.htmlCutting SamplesCompany ProfileThe 3K laser team has innovative spirit. We obtained a number of invention and utility model patents in the fieldof laser fine processing. We developed the drawing dieprecision laser drilling, the coin-making mold relief, theholographic magic color engraving independently. Wewon the awards in the Shanghai Division at InternationalInnovation and Entrepreneurship Competition in 2017,2018. Our machines are widely used in coinage,commemorative coins, wire drawing and other industries.Our laser cleaning machine independently developed which achieve environmentally friendly and non-consumable product surface cleaning methods, widely in 3C, semiconductors, communications, new energy andother industries, combined with auto-mated configurationto meet customer requirements for intelligent equipmentand industrial upgrading. After Sales Service/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
