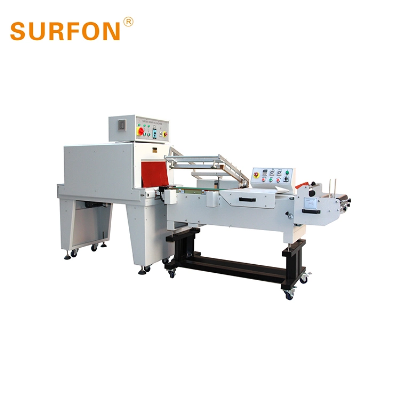

Semi Automatic L Bar Side Sealing Shrink Wrapping Machine for Stapler

Model           SF-20LG SF-4525Power 1kw9kwPower SupplyAC220V 1/3PH 50/60Hz AC220V/380 3PH 50/60HzMax. Packing Size L×W×HL+H≤530mm W+H≤430mmH≤200mm/Tunnel Size L×W×H/1000×450×250mmTable Height750±50mm850±50mmPacking Speed0-15m/min.0-15m/minMax. Loading Weight25kgs 25kgsShrink FilmPOFPOFMachine Size L×W×H1730×790×980mm1300×720×1500mmPackage Size L×W×H1780×840×1130mm1580×770×1105mmG./N. Weight155/125kgs215/234kgsThis machine is made of shrink tunnel and sealing machine. Adopt L bar sealing, then automatically transit to the shrink chamber and finish the shrinking;Anti-stick high-temperature alloys L type sealing knife which can seal neatly, without cracking, coking and smoking; The sealing blade with Teflon non-stick coating layer makeshift non-sticking.It is easy to adjust the conveyor height by the hand wheel;Control the sealing time by time relay;Sliding bracket can be placed all kinds of shrink film, while the punching device is smooth;The whole sealing function of SF-20LG/B is automatically completed by cylinder which decreases labor intensity and increases working efficiency;  Sealing knife with automatic anti mistakenly cutting and anti-overheating protection device effectively protect the operator away from accidental cutting;With emergency stop device in case of emergency situations can immediately stop the machine running;Imported electrical components assure stable performance;Imported heat - resistant insulation curtain greatly reduces heat loss;Stainless steel heating elements makes warming-up fast. Large power fan motor assures big wind volume and air transported uniform. According to products' sizes and output, you can adjust conveyor speed and chamber temperature to achieve optimal contraction effect;Using solid roller conveyor, external anti-high temperature silicone tube can endure heavier objects and rollers will become deformed;The machine is widely used in biscuits, printing products, pharmaceuticals, floors, pottery, boxes and other packaging fields which only need one operator and conveniently working. The packing speed is fast and improves the working efficiency greatly which specially suits for bulk products packing;Suitable for PVC, POF, PET film sealing wrapping.SealerBrandCountryGear MotorGPGTaiwanIntermediate RelaySiemensGermanyTemperature ControllerAutonicsKoreaTime RelayOmronJapanSwitching Power SupplySchneiderFranceOverload RelaySchneiderFranceAC ContactorSchneiderFranceAir SpringTakigenJapan  Shrink TunnelBrandCountryGear MotorOTGShanghaiCirculation MotorSURFONTaiwanIntermediate RelaySiemensGermanyTemperature ControllerAutonicsKoreaSwitching Power SupplySchneiderFranceOverload RelaySchneiderFranceAC ContractorSchneiderFranceAll SwitchesSiemensGermany  Video LinkProducthttps://youtu.be/zg1il-o8qg8Yarnhttps://youtu.be/a8myi_Ffc2IBookhttps://youtu.be/ls_dige0UMESmall boxeshttps://youtu.be/jfYAmAoVINMCigarette case and boxeshttps://youtu.be/hmQfYqZa1VILaundry liquidhttps://youtu.be/6wqKY4bH0zIChange the heating elementshttps://youtu.be/0phldgXk9f8Operating e video 1https://youtu.be/npKAANhslLsOperating e video 2https://youtu.be/bUT3Tqr2zFoInstall the filmhttps://youtu.be/0phldgXk9f8Install the filmhttp://youtu.be/PqhPUwEan-EDove chocolate with U type conveyorhttps://youtu.be/Wvp_Lmdv-50Dove chocolate with U type conveyor and baskethttps://youtu.be/Qt1IRCzb1ccNew York 5x5 Liquid Bottleshttps://youtu.be/8WNjqNnNEicNew York 4x25 Liquid Bottleshttps://youtu.be/HOcRCGp2UVANew York 5x1 Liquid Bottleshttps://youtu.be/ZwHKgdnftZcNew York 5x1 Glass Bottleshttps://youtu.be/WU5M3V1qhR4New York 5x1 plastic bottleshttps://youtu.be/RiOvpK7kFqwItaly board with bottomhttps://youtu.be/1s_Habh8Pc0Italy board with buttomhttps://youtu.be/8CSXIcGcJ4IRussia board with bottomhttps://youtu.be/cntPET7s4LcRussia board with feet/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
