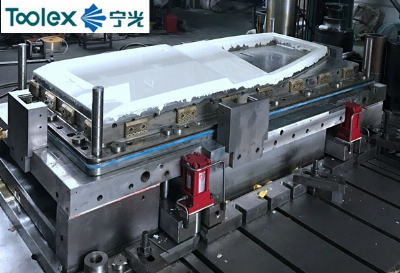

SMC Bus Front Rear Door Panel Compression Mold

Product NameSMC BUS FRONT AND BACK DOOR MOULD- TXS803Cavity and core steel1.2738 (28-32HRC)Slider/lifter/cams1.2344 (H13)Cavity/imprint1 with exchangable insertsEjection systemEjector pins, ejector plates driven by hydralic cylindersHeating systemOil heating system  /steam and electrical are optionalMold finishTechnical polishing grain 400 +  chrome plating   Vacuum systemIncludedIMC systemNot includedCycle time 4 minutesMold life 500000 shotsMold typeSerial moldOur SeriveMDF report / mold flow analysis Weekly process report with photos Quality control team following project Trial report with video and free samples Sample and mould dimension report Optional servicebulk production  primer, top coating assembling & packing  As a mold maker, we are offering more than just mold making. Rapid prototype sample in CNC machining and 3D printingPrototype mold in steel or aluminum or rubberProduct painting as required colors.SMC MOLDBMC MOLDGMT MOLDLFT-D MOLDRTM MOLDMOLD WITH IMC SYSTEM, VACUUM SYSTEM/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
