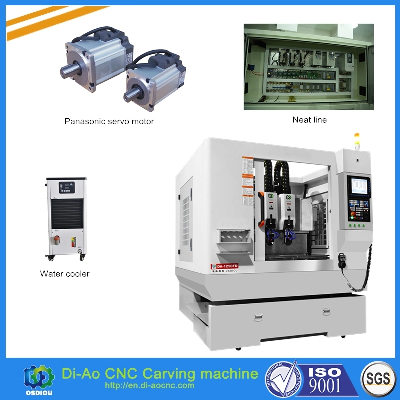

4 Heads CNC Cutting Machinery for Golf-Club Head From China

4 Heads CNC Cutting Machinery for Golf-Club Head  From China  Machine advantages:1) The machine is equipped with 4 independent heads, four heads not only can work independently, but also work by linkage, the efficiency is twice that of an ordinary double carving machine, at the same time , linkage state of 4 heads can be set according to the production or product structure, to be flexible, practical and efficient;2) There is a disc cutter changer driven by servo in the workbench position, the disc cutter changer is made up by 4 independent umbrella cutter disc, cutter capacity of each umbrella cutter disc is 8 cutters, this design ensures that each spindle can change cutter automatically among 8 various shanks. For normal processing, this machine can completely meet the actual processing needs of customers; 3) At the same time, the cutter changer is driven by a precise servo motor + precise divider, which can realize cutter change rapidly between 6 and 7 seconds on the condition of ensuring the accurate positioning of the cutter changer.  CNC  Machine Specifications 1ITEM/MODELDA-1250FD(Full cover )2 WORKING TABLE 3Table size1200×680mm4Max load capacity150kg5 MOVEMENT & RANGE 6X*Y*Z300×500×200mm7Spindle clip to worktable height280mm8 ACCURACY 9Positioning accuracy0.008/300mm10Repeatability accuracy0.005mm11SPINDLE 12Spindle power6Kw13Spindle speed 4000 rpm14Spindle number4 pcs15Spindle coolingwater cooling16FEEDING SPEED 17Rapid traverse30m/min18Cutting feed rate12m/min19REQUIRED POWER 20Air pressure0.5~0.7 Mpa21Power supply380 v22Max Power-23Machine Size 24Machine weight4500kg25 Machine size1950*1920*1980mm26Workpiece cooling 27Workpiece coolingCoolant/mist spray28  29Optional components 30Tool setting instrumentOptional 31  32CNC System Specifications 33System BrandWeihong Ncstudio34Motion Axis7 Axes/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
