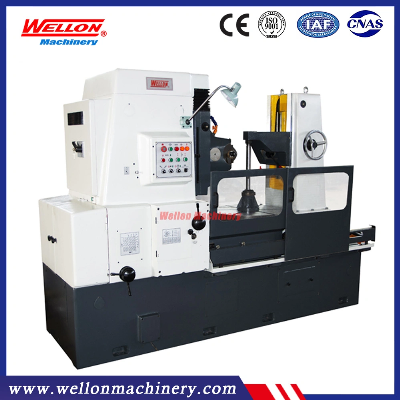

High Precision Gear Hobbing Machine Price Y3180E

Product Description:  Performence Features:1. The machine is suitable for large batch and single production of cylindrical spur and helical gears, worm gears and sprocket.2. The machine is characterized by good rigidity, high strength, high working accuracy, and easy in operation and maintain.3. The machine can be operated not only with forward and backward cutting, but also with axial or radial feed.Technical parameter:ItemY3180EMax workpiece dia with rear column:550mwithout rear column:800mmMax module10mmMax workpiece width300mmMin number of teeth of workpiece12Tool head max vertical travel350mmDistance from hob cutter center to worktable facemax585mm min235mmSpindel tapermorse5Hob cuttermax dia 180mm max length 180mmArbor dia22 27 32 40Distance from hob cutter axes center to worktable axes centermax 550mm min 50mmWorktable hydraulic move distance50mmWorktable aperture80mmWorktable dia650mmSpindle rotate step,range8step   40-200r/minWorktable move speedless than 500m/minMain motor power and rotate speedN=5.5KW 1500r/minMachine weight5500kgMachine size2752X1490X1870mmFree Std Accessories:NameCodespecificationQtyRemarkMain machine and parts  1caseStandard change gears  1 set Tools for installation and setup  yes Technical documents    Operation manual(I)  1Mechanical and hydraulicOperation manual(II)  1electricCertificate of conformity  1 Packing list  1 Catalogue of parts  1 Tools and Accessories    Foundation bolts  6 pcs Company Information:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
