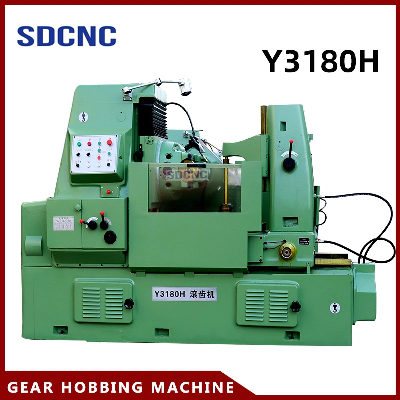

Y3180 Hydraulic Gear Hobbing Machine Gear Hobber Machine

Product Description   The machine is suitable for processing a variety of cylindrical spur gears, helical gears and warrants. Suitable for single-piece production and batch production, such as with more than one of the same type of machine tool is the most reasonable way to use the number of machines dedicated to the use of fine grinding to ensure that the machine tool processing.Detailed PhotosDetail ViewCharacteristicY3180 general type hobbing machine, gear hob used to generating method hobbing cylindrical spur gear, helical gear and spline, sprocket, etc. Can also adopt the method of manual radial feed to processing ordinary worm gear. Order according to the user's requirements, special parts, using tangential feed hobbing worm gear.The machine is suitable for single piece and small batch or batch production gear processing. The main electric, hydraulic components adopt domestic famous brand products.In the key casting lathe bed, column, etc by double deck wall, high stiffened plate structure, its structure is compact, dynamic and static stiffness, high accuracy. Machine adopts the workspace half seal shield, not oil, eliminate roll teeth when the permeability, oil spill pollution to the production environment.Strong rigidity, machine tool working accuracy stable, easy to operate.Machine can press down milling or conventional milling work. Machine with automatic stop mechanism, safety equipment and automatic lubrication system, according to the precision of gear hobbing machine test GB/T8064-1998 standard test factory. According to machining big modulus gear, small, can feed, for once or several times in the double class A hob.Product ParametersPerformence Features:1. The machine is suitable for large batch and single production of cylindrical spur and helical gears, worm gears and sprocket.2. The machine is characterized by good rigidity, high strength, high working accuracy, and easy in operation and maintain.3. The machine can be operated not only with forward and backward cutting, but also with axial or radial feed.Technical parameter:ItemY3180Max workpiece dia with rear column:550mwithout rear column:800mmMax module10mmMax workpiece width300mmMin number of teeth of workpiece12Tool head max vertical travel350mmDistance from hob cutter center to worktable facemax585mm min235mmSpindel tapermorse5Hob cuttermax dia 180mm max length 180mmArbor dia22 27 32 40Distance from hob cutter axes center to worktable axes centermax 550mm min 50mmWorktable hydraulic move distance50mmWorktable aperture80mmWorktable dia650mmSpindle rotate step,range8step   40-200r/minWorktable move speedless than 500m/minMain motor power and rotate speedN=5.5KW 1500r/minMachine weight5500kgMachine size2752X1490X1870mmFree Std Accessories:NameCodespecificationQtyRemarkMain machine and parts  1caseStandard change gears  1 set Tools for installation and setup  yes Technical documents    Operation manual(I)  1Mechanical and hydraulicOperation manual(II)  1electricCertificate of conformity  1 Packing list  1 Catalogue of parts  1 Tools and Accessories    Foundation bolts  6 pcs /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
