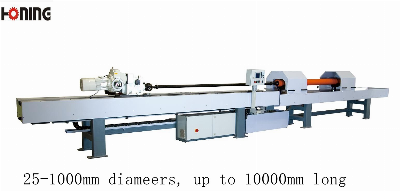

Horizontal Honing Machine for Long Tube

DWH  Series Tube Honing MachineDWH machine is SHANGHAI HONING famouse items , have sold in China and abroad for 10 years , help us to win many customers . 1 Description1 Spindle systemSpindle motor utilizes German original variable speed motor with friction plate, through the three transformation grade of a gear box , it is easy to adjust the spindle speed , spindle motor with brake function can eliminate the phenomenon of the hole wall scratched at the end of honing .2, Spindle Tank reciprocating motionReciprocating motion motor adopts servo motor of the United States, drive by chain link. You can adjust the length of Reciprocating motion , based on the length of workpiece , according to the situation of workpiece machining accuracy at the same time, to pause short stroke on both ends of the workpiece.3 The stone feed systemAdopt servo motor rotation-gear rack mechanical feed mode, the high precision of the servo motor resolution can be precisely controlled feeding . Pinion and rack self-locking function  ,on the other hand, can effectively repair the inner hole accuracy and energy consumption will be greatly reduced.4 Display formation Siemens touch screen mode display can convenient man-machine interface operation. Display content not only has the menu of installation and operation under the states of manual and automatic, and can even show honing head pressure, time and stroke speed honing machine working condition.Spindle load table shows parts top and bottom of the inner holes so that the operator adjust honing parameters  Technical Data: meters : 2-10m, customized .Engine bed main engine systemSTOBER" speed change powerelectrical power5.5kwspindle speed10-350r.p.m.reciprocation powerDANAHER Servo powerelectrical power4.2kwMax. reciprocation length:2000mm-10000mmreciprocation speed:1-40m/minfeed electrical powerMitsubishi servo power electrical power1kwV Jip: maximum clamp outer diameter550mmclamp way:ChainEngine bed coolant system:Magnetism roller purifier+paperRefrigerant maximum current capacity:100L/minCoolant Case:500LRefrigerant request: Special-purpose honing oilpower request:380V,50Hz,3PhsAir Pressure Request :0.6MP,30L/M FlowMachine PhotosHoning Tools PhotosPacking and ShippingFactory View Founded in 2006, SHANGHAI HONING MACHINERY CO.,LTD is a specialized company devote to the invention , produce, sale and service of the honing products Our main products include the honing machine, honing tools and honing stones ect. In addition to providing professional honing solutions based on customer's requirements .At present, we have won a number of invention patents , and also have passed the ISO ,CE certification . Our products enjoy high reputation not only in Chinese market, and exported to the United States , Western Europe , and many other developed countries , with stable quality and excellent service is the consistent favor of international customer. In 2016 year , SHANGHAI HONING has a new factory in YXING city , we develop our business better and better . Also we are waiting for more good partners to cooperate with us in the future We are looking for distributors , welcome to contact with us !      /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
