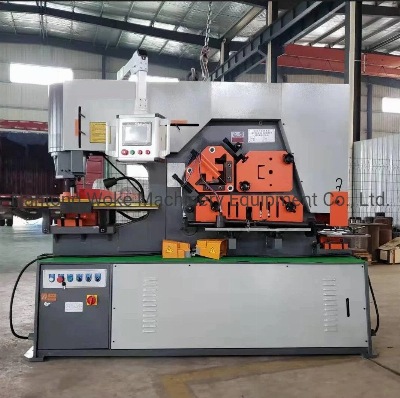

CNC Hydraulic Ironworker 120tons

PLC Semi-automatic Hydraulic Ironworker, Combined Punching and Shearing Machine                                                                                                                                          Q35Y HYDRAULIC IRONWORKER OVERVIEW                                                                                                                                          Hydraulic transmission, it can cut, punch and die cut on plate, square steel, round steel, angle steel, channel steel and I-beam. The cutting station is equipped with an electronically controlled shearing stopper, and the punching station is equipped with Integrated semi-automatic CNC material stop platform, the effective range of material stop is 800x500, the hole is automatically positioned according to the program, which greatly improves the punching efficiency, and the CAD file can be directly imported to automatically generate the punching program and visualize the touch screen operation.MAIN PARAMETERS OF SEMI-AUTOMATIC CNC IRONWORKER Q35Y-25SpecificationsPressure(KN)1200Max. plate shearing thickness(mm)25Tensile strength of steel plate(N/mm2)≤450Shearing angle8°Shearing size(thicknessxwidth)(mm)25x330, 16x600Stroke(mm)80Number of strokes(times/min.)12-22Throat depth(mm)600Max. punching thickness(mm)25Max. punching diameter on 25mm plate(mm)35Main power(kw)7.5Dimension(mm)2400x1000x2100Weight(kg)4000  Profile steel shearingRound steel, Square steel60, 50x50Equal angle steel 90° shearing160x14Equal angle steel 45° shearing60x6T profile 90° shearing160x14T steel 45° shearing80x10I beam steel180x94x6.5C channel200x75x9Remark: T steel, I beam steel and C channel is customized   CNC stopper Dimension(LxWxH)mm1700x800xHeight(height is suit for worktable)Workpiece size (LxW)mm800x500Min. distance between hole to side mm25Max. plate punching thickness mm25Programming modeScreen input or CAD drawing U disk importBack gauge accuracy±0.15mmQ35Y Features                                                                                                                                          Technical Parameters                                                                                                                                          Machine Photos                                                                                                                                          Machinery Supply Range  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
