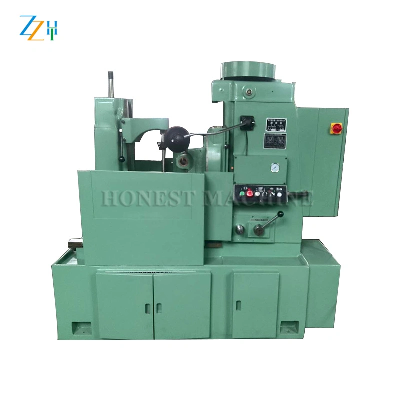

Electric Hobbing Cutter Gear Machine / Metal Hobbing Gear Shaper Machine

Electric Hobbing Cutter Gear Machine / Metal Hobbing Gear Shaper MachineProduct Description1)The machines permit cutting by climbing hobbing method, in addition to conventional hobbing method, to raise the productivity of the machines. 2)A rapid traverse device of hob slide and an automatic shop mechanism are provided on the machines allowing several machines to be handled by one operator. 3)The machines are easy in operation and convenient to be maintained.Product ParametersModelHT-GCJ3180Maximum module of workpice10mmMaximum module of workplace800mmMaximum machining width work piece320mmminimum number of teeth12maximum vertical travel350mmmaximum swing Angle0°Dist between axis of workplace and axis of cutterMaximum 585 mm ,minimum 235 mmThe workbench hole diameter80mmTable Dimension650mmDist between table and axis of cutters:Minimum 550 mm ,maximum 50 mmHob mandrel diameter22 27 32 40The workbench hydraulic fast moving distance50mm3180Max. Diameter of cutter180mmMax. Length of cutter180mmspeed of mainshaft40-200r/minWeight5500kgDimension2377*1255*2000mmThe main power of motors and the synchronous speedN=5.5KW 1440r/minThe axial power of motors and the synchronous speedN=1.1KW 1410r/minDetailed PhotosPackaging & ShippingCertificationsOur CustomerContact usIf you need further information, please contact us freely, we will do our best to cooperate with you./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
