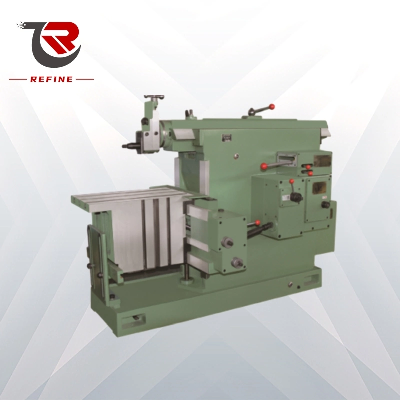

Bc60100 High Quality Hydraulic Shaper Machine

PRODUCTION DESCRIPTIONThe machine is used for planing various surfaces and forms, suitable for single piece and small batch production.Heat treatment processes such as tempering, vibration aging, ultra-audio quenching and other key parts of the bed make the precision of the machine more stable and the service life longer.The main cutting movement and feed movement are gear drive, can be stepless speed regulation, with hydraulic overload safety device, stable rotation, small excess range, start and stop flexible and reliable, machine rigidity, cutting force, high reversing accuracy, low oil temperature, small thermal deformation, precision stability, can be applied to the needs of strong cutting and continuous work.MACHINE PICTURESPARAMETERSSpecificationsUnitsBC6085Maximum shaping lengthmm850Max.range of the horizontal movement of the tablemm400Max.distance between the ram bottom and tablemm710Max.length of the vertical movement of tablemm360Dimension of table top(L*W)mm800×450Travel of tool headmm160Number of ram strokes per minuteTimes min17,24,35,50,70,100Swivel of tool head°+/-60Maximum size of tool shank(W*T)mm20X30Range of table feedHorizontal 12 stepsmm0.25-3vertical 12 stepsmm0.12-1.5Rapid speed of Table Horizontal mm1.2vertical Mm/min0.85Width of the T-slot for center positioningmm22Main motor powerKW5.5Overall dimension(L*W*H)mm2950×1325×1693N.w./G.Wkg2940/3090ACCESSORIESNo.ItemSpecificationQuantityRemark1Shaper machineBC60851 set 2Ski pad   3Rubber pad of Ski pad    4Triangle belt   5Hex Wrench 1 pc 6Hex Wrench 1 pc 7Hand crank  1 pc 8Wrench  1 pc 9Wrench  1 pc 10Foundation bolt 4 pcs 11Oil Gun 1 pc 12Operation Manual 1 pc 13Packing List 1 pc PACKING & SHIPPING  WORKSHOP/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
