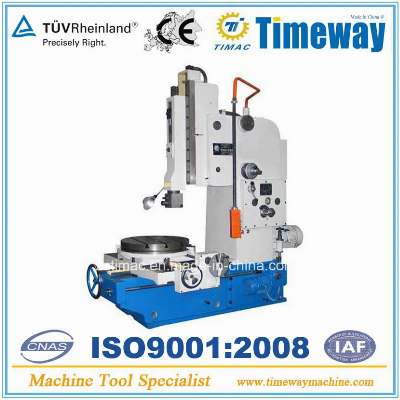

Hydraulic Slotting Machine (BY-320E, BY-400E) Features:1. The Hydraulic Slotting Machine is designed for slotting various plane, formed surface ( include cambered surface) and key way of workpiece, the machine is suitable for single piece or small batch production. 2. The feed of worktable have three different directions ( longitudinal, cross and rotary), so the workpiece can be processed in various surface only need one setup. 3. The ram reciprocation hydraulic transmission mechanism and worktable hydrofeeder are equiped. 4. The speed of ram is invariant in each stroke, the speed of ram and the worktable movement can be adjustable in stepless way. 5. The hydraulic console has reversing mechanism for the ram reversing and oil feeding. 6. Besides hydraulic and hand feed, the worktable also has longitudinal, cross and rotary rapid motion of independent motor drive. Parameter:SpecificationsUnitBY-320EBY-400EMax. stroke length of rammm350450Min. stroke length of rammm125125Max. slotting lengthmm320400Distance of vertical adjust of rammm340450Extreme high speed for work stroke of ramm/min2929Extreme low speed for work stroke of ramm/min55Speed ratio of work stroke and return stroke of ram 1:1.531:1.53Speed adjust for work stroke steplesssteplessMax. slotting forceKN16.616.6Distance from tool holding surface to column frontmm630680Distance from worktable surface to underside of slide rackmm500550Max. longitudinal travel of worktablemm620620Max. transverse travel of worktablemm535620Diameter of worktablemm630730Inclination of ram°0-100-10Feed range of worktable in longitudinal & transverse directionmm0.054-1.240.054-1.24Rotary feed range of worktable°0.035-0.8050.035-0.805Max. size of slotting tool (LxW)mm25x4025x40Max. loading weight on worktablekg500800T-slot width in the center of worktablemm18H818H8Power supply of main electric motorkw5.55.5Power of motor for rapid transversekw0.750.75Net weight (approx)kg29003500Dimensions of machine tool (LxWxH)mm2624x1405x25052624x1405x2550Flatness of machined surfacemm0.0150.015Verticality of machined surfacemm0.0250.025Surface roughness 6.36.3Verticality of machined side surface against basemm0.020.02 Our Advantages1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.2. Quick action and reply for the technical questions at any time in the whole life of the machine.3. Overseas after service center available in some region.4. Engineer overseas service available on the requirement of customer(relative cost born by customer).Packaging & ShippingCompany ProfileTimeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.Customer visitedSo far, we have received many customers from abroad, and they are all very satisfied with our company and productsThe following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view Conventional LatheCNC LatheCNC Machining CenterCNC Milling MachineGrinding MachineMilling MachineSpecial Use LatheBoring Machine FAQQ: Why choose TIMEWAY MACHINE?A: 1 . High quality with competitive price;2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
