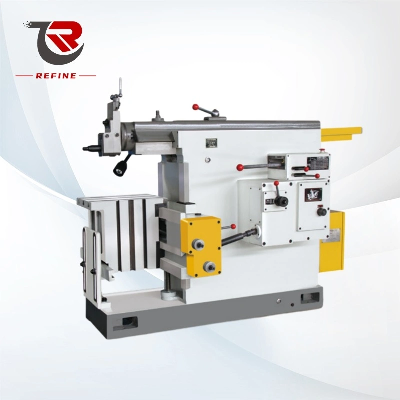

Bc6050 Metal Shaper Machine Price

PRODUCTION DESCRIPTIONShaper Machine is a general purpose shaper machine, which is used for surface processing of various small and medium-sized parts.The machine tool is composed of bed, ram, rocker, gearbox, feed box, cross beam, workbench, lubrication system and electrical system.The motor drives the ram through the gearbox and rocker mechanism, and the ram reciprocates in the guide rail of the top surface of the bed, and there is a six-speed change. The rail clearance can be adjusted with inserts. The front end of the ram is a tool rest and a turntable, and the tool rest can be fed along the slide of the tool rest. When planing the bevel, the turntable turns at a certain Angle as needed.The beam can be used for manual or mechanical vertical feed along the front guide rail of the bed, and the table is installed on the beam, and the horizontal feed can be used for manual or mechanical feed along the beam guide rail. There are 12 kinds of feed in each case. The gap between the beam and the guide rail of the workbench can be adjusted by the box bar, and the front end of the workbench is supported to increase the stability of the work.The horizontal or vertical feed direction of the table is controlled by a handle. The feed rate can be adjusted on the fly.The main drive movement of the machine tool is provided with a brake, which can make the ram quickly stop in the required position, and the starting stop and braking of the machine tool are controlled by a handle.The machine tool gearbox, feed box, ram guide rail, rocker mechanism are all centrally lubricated by the oil pump, and the oil supply can be adjusted according to needs.MACHINE PICTURESPARAMETERSSpecificationsUnitsBC6050/6063/BC6066Maximum shaping lengthmm600/630/660Max.range of the horizontal movement of the tablemm385Max.distance between the ram bottom and tablemm630Max.length of the vertical movement of tablemm360Dimension of table top(L*W)mm440x360/630X400/660X400Travel of tool headmm120Number of ram strokes per minuteTimes min14,20,28,40,56,80Swivel of tool head°+/-60Maximum size of tool shank(W*T)mm20X30Range of table feedHorizontal 12 stepsmm0.4-5vertical 12 stepsmm0.08-1.00Width of the T-slot for center positioningmm18Main motor powerKW3Overall dimension(L*W*H)mm2000X1300X1550N.w./G.Wkg1750/1870 ACCESSORIESNo.ItemSpecificationQuantityRemark1Shaper machineBC6050/BC6063/BC60661 set 2Ski pad   3Rubber pad of Ski pad    4Triangle beltA1499  5Hex Wrench5mm1 pc 6Hex Wrench6mm1 pc 7Hand crank  1 pc 8Wrench 24mm1 pc 9Wrench 30mm1 pc 10Foundation boltM164 pcs 11Oil Gun 1 pc 12Operation Manual 1 pc 13Packing List 1 pc PACKING & SHIPPING  WORKSHOP/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
