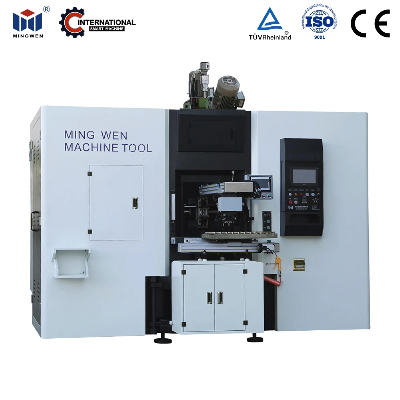

Rotary Transfer Machine Vertical

This is a multi-station transfer machine, to work for the multi-spot processing needs, complete the machining of the part within very short cycle time  through multi-spindles linkage. This demonstration is showing processing of  part for sewing machine, fix a slidable power head to fulfile dual holes machining. Its high cost performance and efficient widely used in the mass-production task, and fit for compact workshop condition. The compact structure and amazing cycle time compare to the normal single CNC turning machine or other boring machine, performing huge advantage. It is much easy to customize to user specific requirement on process of the part, flexibly to set power head according to process conversion. Example of the rotary transfer machine process      Roughly drilling   smaller  positioning hole         Spindle#1,110mm,Taiwan made, DrillingStation #2Spindle #2, 110mm.Taiwan made, DrillingStation #2Turning motor (servo) 4 KW," Gtake  "China, 2800RPMFeeding motor (servo) 1 KWless       than 2000RMPSynchronized clamp.Code:CP-40,China madeTurning motor (servo)4 KW," Gtake " China, 2800RPMFeeding motor (servo)1   KW, "Xinjie"China, less            than 2000RMPSynchronized clamp.Code:CP-40,China madeSmaller hole drilling Bigger Hole drilling       Spindle#3,110mm,Taiwa n made, drilling(int)Station #3Spindle #4, 110mm.Taiwan made, Threading(Ext)Station #3Turning motor (servo) 3KW," Xinjie  "China,2800RPMFeeding motor (servo)1    KW,   "Xinjie      "China,    less than 2000RMPSynchronized clamp.Code:CP-40,China madeTurning motor (servo) 5KW,"  Gtake   "China, 2800RPMFeeding motor (servo)1 KW (Xinjie"Chinaless            than1200RMPSynchronized clamp.Code:CP-40,China made   Smaller hole  drilling Smaller hole threadingSpindle#5,110mm,Taiwan made, Boring or millingStation #4Spindle #6, 110mm.Taiwan made, Groov millingStation #4Turning motor (servo) 4KW," Gtake   "China, 2800RPMFeeding motor (servo)1      KW     ," Xinjie  "China,less         than 2000RMPSynchronized clamp.Code:CP-40,China madeTurning                  motor (servo)3 KW, German threadinghead ) , 800RPMFeeding                  motor (servo)  Y-axis1 KW, X-axis 0.75KW"Xinjie" China,less                than2000RMPSynchronized clamp.Code:CP-40, China made      One side surface milling, with slidable power head  another side surface milling with slidable power head Spindle#7,110mm,Taiwa n made, ThreadingStation #5Spindle #8, 110mm.Taiwan made, GroovingStation #5Turning motor (servo) 4KW," Gtake   "China, 2800RPMFeeding motor (servo) 1       KW,    "Xinjie        "China,     less than 1200RMPSynchronized clamp.Code:CP-40,China madeTurning                  motor (servo)4KW,  " Gtake "China, 2800RPMFeeding                  motor (servo)1   KW   (Xinjie "Chinaless                than2000RMPSynchronized clamp.Code:CP-40, China made      Bigger hole grooving ( boring) Edge millingSpindle#9,110mm,Taiwan made,drillingStation #6Spindle #10, 110mm.Taiwan made, Threading (int)Station #7Turning    motor (servo)4KW,"Gtake"China, 2800RPMFeeding motor (servo)1 KW,"Xinjie"China,less           than 2000RMPSynchronized clamp.Code:CP-40,China madeTurning motor (servo)3 KW," Xinjie " China, 2800RPMFeeding motor (servo) 1 KW,"Xinjie       "China,less         than1200RMPSynchronized clamp.Code:CP-40,China made      another bigger hole grooving (boring) Smaller hole threading Spindle#11,110mm,Taiwan made,drillingStation #6Spindle #12, 110mm.Taiwan made, Threading (int)Station #7Turning    motor (servo)4KW,"Gtake"China, 2800RPMFeeding motor (servo)1 KW,"Xinjie"China,less           than 2000RMPSynchronized clamp.Code:CP-40,China madeTurning motor (servo)3 KW," Xinjie " China, 800RPMFeeding motor (servo) 1 KW,"Xinjie       "China,less         than1200RMPSynchronized clamp.Code:CP-40,China made   Machine Basic ParameterStation Numbers8 stationsSpindle Numbers12 SpindlesSyntronized Clamp ModelCP-40Driving Head MotorFull servoPLC modeBus motion ControllerIndexing Table421-8DHMI10"Spindle SizeD110mmTotal Power 62KWMachine Foot print area(ovrall size) CM350x240x298cmWeight  (KG)9000  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
