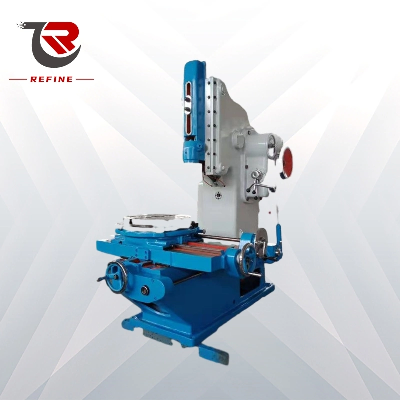

B5020 Manual Vertical Slotting Machine for Gear

PRODUCTION DESCRIPTIONB5020 slotting machine is used for all kinds of workpiece surface, forming surface and keyway, internal keyway, spline and internal teeth processing, can also be used for all kinds of die processing. This machine tool is suitable for batch production factories, single small batch production factories and all kinds of repair factories.The machine tool is composed of bed, ram, workbench, feed box, gearbox, electrical, lubrication and other main components1. Bed part: composed of the main parts of the upper bed and the lower bed.2. Ram part: that is, the crank mechanism, that is, the rotation movement of the crank gear is changed into the reciprocating movement of the ram structure3. The table part: is composed of round table, sliding block and sliding block and other main parts.4. Three-axis movement: the insert tool with the slider in the vertical linear reciprocating movement, the workpiece along the longitudinal, transverse and circumferential direction of intermittent feed movement to achieve the processing of the workpiece.5. The use of three-phase AC power supply: 380V, 50Hz6. Type D is a fast moving device for the external workbench.MACHINE PICTURESPARAMETERSSpecificationB5020Max slotting length200mmMax machining size600x220mmMax workpiece weight400kgNo. of ram strokes per minute30,50, 80, 125RAM vertical adjust distance230mmInclination angel of ram0-8 degreeMax tool shank size25x40mmTable diameter485mmDistance between table surface and bottom of carriage500mmDistance between tool support surface and front of bed 320mmMax longitudinal travel of table(Mechanical/manual)400/450mmMax cross travel of table(Mechanical/manual)450/500mmRange of table longitudinal and power feeds0.08-1.21mmRange of table rotary power feeds0.052-0.0783Power of main drive motor3kwRotating speed of main drive motor1430rpmWeight (approx)(Net/gross)2200kg/2400kgOverall dimensions(LXWXH)1916X1305X1995mmACCESSORIESNo.ItemSpecificationQuantityRemark1Hex Wrench5mm1 pc 2Hex Wrench6mm1 pc 3Foundation boltM164 pcs 4Single Ended Open Jaw Spanner22~241 pc 5Oil Gun 1 pc 6Operation Manual 1 pc 7Packing List 1 pc PACKING & SHIPPING  WORKSHOP/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
