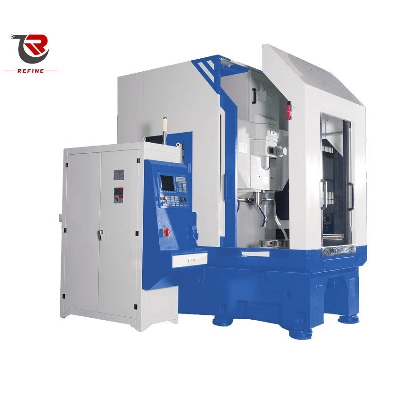

Yw5132r Universal CNC Helical Gear Shaping Machine

 PRODUCTION DESCRIPTION1. The machine tool is seven-axis and five-axis linkage, and the processing of any helical gear can be realized by inputting basic machining parameters of helical gear through the boundary circle.2. The tool rest adopts hydrostatic guide rail and hydrostatic bearing structure, which is suitable for efficient machining of machine tools.3. Configure the upper and lower sections of the machine tool, fixture, deburring mechanism and other accessories according to the user, which is suitable for mass production of partsMACHINE PICTURESPARAMETERSDescriptionUnitY5132RYA5132RYZ5132RYW5132RMax. workpiece dia. external/internalmm320/220+d320/220+d320/220+d320/200+dMax modulemm8888Max stroke lengthmm10010010090max tooth widthmm90909080Range of spindle stroke speedStr/min5-20005-20005-20005-1300Spindle diametermm85858585Centric distance between cutter and worktablemm-115-270-115-270-115-270-115-270Distance from end face of spindle to surface of worktablemm225-335175-275225-335230Range of circular feedingmm/str0-50-50-50.01-5Range of radial feedingmm/str0-16000-16000-16000-1000Processing spiral angle range    ±45°Hydrostatic motor speedrpm172017201720 Worktable diametermm420320420320Worktable aperturemm120100120100APPLICATIONPACKING & SHIPPINGWHY CHOOSE US /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
