Bc5050 Slotting Machines/Vertical Slot Machine

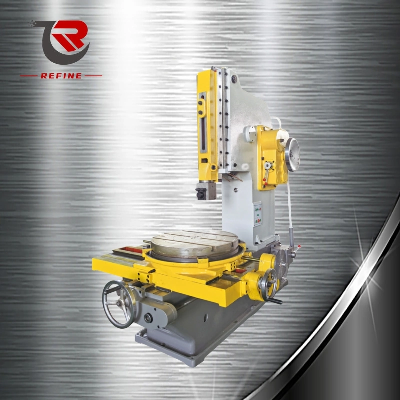

PRODUCTION DESCRIPTIONSlotting machine is used for all kinds of workpiece surface, forming surface and keyway, internal keyway, spline and internal teeth processing, can also be used for all kinds of die processing. This machine tool is suitable for batch production factories, single small batch production factories and all kinds of repair factories.The machine tool is composed of bed, ram, workbench, feed box, gearbox, electrical, lubrication and other main components1. Bed part: composed of the main parts of the upper bed and the lower bed.2. Ram part: that is, the crank mechanism, that is, the rotation movement of the crank gear is changed into the reciprocating movement of the ram structure3. The table part: is composed of round table, sliding block and sliding block and other main parts.4. Three-axis movement: the insert tool with the slider in the vertical linear reciprocating movement, the workpiece along the longitudinal, transverse and circumferential direction of intermittent feed movement to achieve the processing of the workpiece.5. The use of three-phase AC power supply: 380V, 50Hz6. Type D is a fast moving device for the external workbench.MACHINE PICTURESPARAMETERSSpecificationBC5050Max slotting length500mmMax workpiece weight2000kgNo. of ram strokes per minute9, 12.5,18,25,36,50rpmRam tilt angel±10Tool Chuck T-slot width22H11mmMax cutting force16000NTable diameter1000mmDistance between table surface and bottom of carriage740mmDistance between tool support surface and front of bed990mmMax longitudinal travel of table(Mechanical/manual)660mmMax cross travel of table(Mechanical/manual)1000mmRange of table longitudinal and power feeds0.1-1.2mmRange of table rotary power feeds3’-36’ deg/perPower of main drive motor7.5kwFeed servo motor4kwRotating speed of main drive motor1400rpmWeight (approx)(Net)10.3tOverall dimensions(LXWXH)3480X2085X3307mmPacking Size3690x2260x1200mm2250x1100x2250mmACCESSORIESNo.ItemSpecificationQuantityRemark1Hex Wrench5mm1 pc 2Hex Wrench6mm1 pc 3Foundation boltM164 pcs 4Single Ended Open Jaw Spanner22~241 pc 5Oil Gun 1 pc 6Operation Manual 1 pc 7Packing List 1 pc PACKING & SHIPPING  WORKSHOP/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
