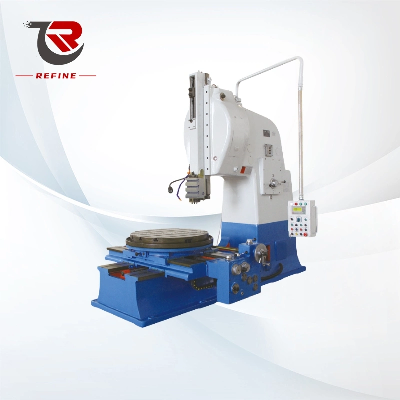

PRODUCTION DESCRIPTIONSlotting machine is used for all kinds of workpiece surface, forming surface and keyway, internal keyway, spline and internal teeth processing, can also be used for all kinds of die processing. This machine tool is suitable for batch production factories, single small batch production factories and all kinds of repair factories.The machine tool is composed of bed, ram, workbench, feed box, gearbox, electrical, lubrication and other main components1. Bed part: composed of the main parts of the upper bed and the lower bed.2. Ram part: that is, the crank mechanism, that is, the rotation movement of the crank gear is changed into the reciprocating movement of the ram structure3. The table part: is composed of round table, sliding block and sliding block and other main parts.4. Three-axis movement: the insert tool with the slider in the vertical linear reciprocating movement, the workpiece along the longitudinal, transverse and circumferential direction of intermittent feed movement to achieve the processing of the workpiece.5. The use of three-phase AC power supply: 380V, 50Hz6. Type D is a fast moving device for the external workbench.MACHINE PICTURESPARAMETERSSpecificationBC5063Max slotting length630mmMax workpiece weight2000kgNo. of ram strokes per minute8,12.5,18,25,36,50rpmRam tilt angel±10Tool Chuck T-slot width22H11mmMax cutting force20000NTable diameter 1020mm Distance between table surface and bottom of carriage 800mm Distance between tool support surface and front of bed 1120mm Max longitudinal travel of table(Mechanical/manual) 1000mm Max cross travel of table(Mechanical/manual) 700mm Range of table longitudinal and power feeds 0.1-1.2mm/per Range of table rotary power feeds 3'-39' deg/per Power of main drive motor 11kw Feed servo motor 4kw Rotating speed of main drive motor 1400rpm Weight (approx)(Net) 11t ACCESSORIESNo.ItemSpecificationQuantityRemark1Hex Wrench5mm1 pc 2Hex Wrench6mm1 pc 3Foundation boltM164 pcs 4Single Ended Open Jaw Spanner22~241 pc 5Oil Gun 1 pc 6Operation Manual 1 pc 7Packing List 1 pc PACKING & SHIPPING WORKSHOP/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
