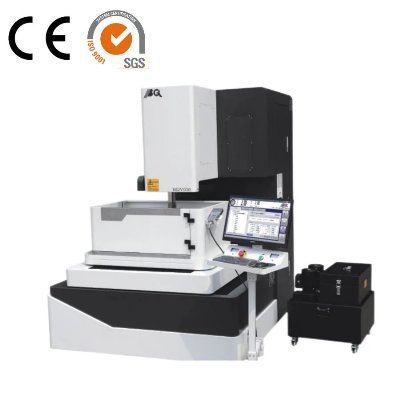

High Speed Fast Cutting Wire Cut EDM Bqy500 CNC Wire Erosion Machine

 Leading CNC Wire Cut EDM Manufacturer in China, Providing customer High End EDM machines with Fast cutting speed.Customers spread in aerospace, electronic,aotomative, 3D printing, militay and defense,mold and tooling industry.Products export to Europe, Russia, South America, Southeast Asia, Middle East, etc    ParametersBQY400BQY500BQY630Worktable size(mm)735x460836x550935x645X/Y travel(mm)400x320500x400630x500Max workpiece size(mm)800x500980x6001140x730Max cutting thickness(mm)300300300Max load weight(kg)400600900U/V travel(mm)80x8080x8080x80Max cutting taper±15°/150mm±15°/150mm±15°/150mmControl typeX Y Mitsubishi Servo, Z U V W 6 axis servoX Y Mitsubishi Servo, Z U V W 6 axis servoX Y Mitsubishi Servo, Z U V W 6 axis servoZ transmissionNumerical controlNumerical controlNumerical controlSimultaneously Controlled axesX Y U V-4 AxisX Y U V-4 AxisX Y U V-4 AxisWire diameter(mm)Φ0.1-Φ0.2Φ0.1-Φ0.2Φ0.1-Φ0.2Wire speed (m/s)1-11.41-11.41-11.4Reposition accuracy(mm)≤±0.003≤±0.003≤±0.003Max cutting speed (mm2/min)≥300≥300≥300Roughness/Ra(um)0.7-1.40.7-1.40.7-1.4Water tank volume(L)120120120Filtering method3 layer filteration3 layer filtration3 layer filtrationPower supplyThree phase 380V AC/50HzThree phase 380V AC/50HzThree phase 380V AC/50HzControl systemBaqi systemBaqi systemBaqi systemTotal power consumption(kw)1.61.71.8Max machining current(A)101010Machine gross weight(kg)210026003600Machine size(mm)2100x1680x21002360x1870x21602398x1938x2180Top-bottom abnormity cutting YesYesYes  Remote control and digital management function:Our machine integrates data management, information mornitoring and other digital functions. Users can operate monitoring software on the remote servicer in real time  to monitor each machines working status, processing progress, to arrange work high efficiently.Standard Configuration:1) Win10 System with BQ control System(own R&D),dual CPU2) HT300 Casting Machine Body, two times heat treatment, prevent deformation effectively.3) 5 axis digital display and Z axis motorized freely drive up and down.  4) Pulse and anti-electrolytic power supply, to enhance cutting accuracy.  5) Wire tension controlled by servo motor, much smart.6) Mitsubishi /Panasonic  servo for XY, XYUVZ 5 axis servo7) THK / HIWIN /PMI high precision linear guide way8) THK / HIWIN /PMI high precision ball screw9) NSK, Japan /FAG, Germany bearings  10) Japan PANASONIC converter.  11) PHILIPS Industrial Computer12) Automatic center lubrication system. System functions: BQ series medium wire cut EDM adopts computer control, X,Y,U,V,4 axis simultaneously controlled, the discharge parameter can be automatic selected and control. It is programmed with internationally universal ISO code.The main system functions are as following:  mirror machiningproportionally scalingconventional taper cuttingtop-bottom abnormality cuttingsingle-stage machining4 axis simultaneously cuttingprogram editingautomatic wire radius compensationautomatically machining condition convertsimulation checkreturn halfwaypitch compensationautomatic edge findingautomatic center findingwire alignmentgraphic real time tracking and checksubprogram callingunmanned processing(power-off after finishing)back to the origin point and suspension pointwire feeding speed adjustmentFull travel reposition accuracy≤ ±0.003mm     Measured by Laser Interfermeter. Reverse error : 0.0009mmSystem deviation: 0.0016mmAverage deviation: 0.0015mmAccuracy: 0.0016mmRepeatability: 0.0009mmR+(single repeatability): 0.000mmR-(single repeatability): 0.000mmA+(single accuracy): 0.0016mmA-(single accuracy): 0.0014mmDelivery 3000 sets a year:      Contact us for more details, you will get reply within 24 hours .  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
