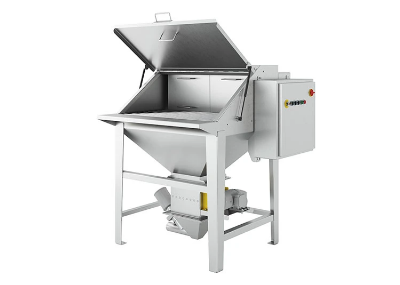

Bulk Material Handling Small Bag Unpacking Station Feeder

Working principleFeeding specification: 0-50KG/packFeeding method: single feeding port/double feeding portMaterial lifting: manual/lifting bucket/lifting truck/forkliftArch breaking type: pneumatic high-frequency vibration/activation hopper vibrationBlowback type: pneumatic pulseOptional equipment: iron remover/single-layer vibrating screen/coarse crusher/bagging device/weighing and conveyingTechnical ParameterModelWT300Volume(L)300Power(KW)11.1 Compressed air consumption2/Pressure(L/min)/MPa50/0.6Discharge interfaceQuick installation 12 inchDust removal fan air outletDN150Weight(Kg)300Overall dimension(mm)L×W×H1300×1100×2000Product configurationCustomer referencProduct FeaturesProduct characteristics of dust-free feeding station:1. Simple structure, safe and convenient operation, and convenient maintenance;2. Dust free operation, achieving fully enclosed bag feeding and pipeline transportation;3. No dead corner design, easy to clean;4. Automatic dust removal system, eliminating dust flying and improving the working environment;5. Various specifications of bag opening stations can meet different processing requirements;6. Suitable for industries involving powders such as pharmaceuticals, food, chemicals, batteries, etc.Common troubleshootingWhen there is a malfunction in the dust-free feeding station, please check according to the following procedure first:Fault phenomenonFault causeTroubleshootingNo backflushingThe compressed air valve is not openOpen the compressed air valvePulse valve malfunctionCheck pulse valveFilter cloggedReplacing the filter elementNo electric vibrationDamaged vibration motorReplace the vibration motorThe vibration motor is not powered onConnect the power supply to the vibration motorSlow or no fan extractionFan damageReplacing the fanFilter cloggedReplacing the filter elementIf the fault cannot be eliminated after following the processing methods listed in the above table. Please contact our sales personnel in a timely manner so that we can quickly diagnose the cause and troubleshoot the problem for you.Application IndustryDust free feeding stationProduct application scope: food industry, pharmaceutical industry, metallurgy and mining industry, chemical industryMaterials: essence, monosodium glutamate, adsorbent, catalyst, graphite, rouge, powder blusher, polyethylene, polypropylene, polyoxyethylene, fertilizer, veterinary medicine, feed, premix, additives, laundry powder, salt, monosodium glutamate, chicken essence, white sugar, seeds.Customer Reference  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
