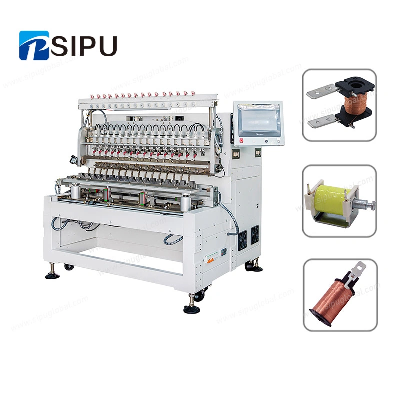

16 Axis High Precision CNC Automatic Relay Bobbin Coil Winding Machine

Product Description16 Axis High Precision CNC Automatic Relay Bobbin Coil  Winding Machine    Detailed Photos Finished Products after winding  Product Description 16 spindles CNC Precision Automatic coil Winding Machine Description :The coil winding equipment is a powerful and efficient solution for all your coil winding needs. With 16 spindles and the ability to wind in multiple directions and angles, this multi-axis winding machine is perfect for layer winding.With precise tension control and the ability to create a range of coil types, including bobbin coils, our machine is suitable for a wide range of applications, from automotive to industrial,such as relays, current contactors, solenoid coils, inductor coil, filter choke coil,lens coil, transformer coil, inverter coil, valve coil, ignition coil, adapter coil, switch coil,car horn coil, primary coil, mirror coil and various related coil etc.The winding machine is highly automated, efficient, and can be programmed to wind coils of different sizes and shapes. This ensures fast, precise, and consistent coil winding, which is critical for ensuring the performance and reliability of the final product.Machine  Features:1.Advanced CNC control technology for easy programming and operation2.Intuitive touch screen interface for setting winding speed, turns, and direction3.Safety features that automatically stop the machine in case of malfunction4.16-axis winding machine with 60mm shaft spacing, suitable for medium-sized frame winding processes5.Quick-change fixture structure for easy replacement of winding fixtures6.Winding shaft equipped with high-speed bearings, achieving a maximum speed of 18,000 RPM7.S3M wear-resistant synchronous belt to reduce noise8.Electrically designed with servo motors to reduce air consumption and provide higher programmability and smoother mechanical movements.Specification of each moedel :ModelSPBZ23-A1B16No. of  Spindle    16 SpindlesSpindle   Pitch(mm)60mmSpindle  Speed(rpm)Max.18000rpm (CW/CCW) Maximum Travel DistanceX-Axis 110mm (Front/Back)Y-Axis 110mm (Left/Right)Z-Axis 80mm (Up/Down)ControllerEtherCAT or RTEX controllerWire Range(mm)0.02-0.4mmPower SourceAC380V 3P 50HZ or AC200V 3P 50/60HZPower Consumption2000WAir Pressure (Mpa)0.4Mpa~0.6MpaMachine Size (mm)1300(W)×1250(D)×1270(H)mmMachine Weight (mm)About 1100KG  Option1.Wire twister2.Cutter3.Automatic loading & unloading4.Peeling device5.Electrical tensioner Certifications QC and R&DCustomerized Service1. Customized product design and manufacturing2. Customized tranning3. Technical suggestions4. Warranty Period: 12 month usually5. Engineers available to service overseas About UsXiamen SIPU Mechanical Co., Ltd., established in 2014,is dedicated to advancing coil production processes and delivering comprehensive solutions for the development and manufacturing of various coils.We are proud of our wide range of patents and innovations that cater to different coil winding needs. Our strong focus on research and development allows us to prioritize meeting our customers' requirements by providing customized solutions that exceed expectations.With our 3200 sqm factory, we exercise stringent control over the complete production process, guaranteeing quality, price, efficiency, and punctual delivery. We have undertaken ODM projects for factories affiliated with renowned companies like Meishuo and Sanhua. Our customers also acknowledge our exceptional after-sales service and technical support.Production:coil winding machine,motor winding machine,pin inserting, taping, soldering machine, fully automatic production line Production Workshop /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
