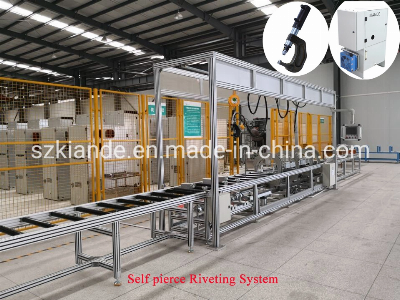

Sandwich Busbar Reversal Assembly Line Busduct Fabrication Riveting Machine Production

Busbar semi-automatic reversal assembly line, busduct production equipment, busway production line, busbar manufacturing lineSemi-automatic assembly line is composed of three parts, pre-assembly station, automatic reversal station and accessory assembly station. Pre-assembly station: Operators will pre-assemble and fix busbar main parts by the fixtures and transfer the busbar to the automatic reversal station manually.Automatic reversal station: When busbar arrives in the reversal station, operator shall fix the busbar by clamp and start riveting on one side. After one side is done, rotators will be reversed 180 degrees for other side's riveting.Accessory assembly station: After busbar is riveted, operator will assemble the busbar accessories at this station.Advantages:1. The semi-automatic busbar production line can realize automatic clamping from left to right and down to up which is convenient for drilling and riveting.2. The production line is flexibly compatible,suitable for busbar with width 74.5mm-350mm.3. The electrical control system can clamp at the same time or separately.4. The semi-automatic busbar assembly line is a cost-effictive production line and more stable which can decrease the NG rate and labour cost and increase the working efficiency.5. The clamping is powered by air compressor 5-8MPA, which only comsumes the air when operation and is more environment-friendly comparing with the electrical comsumption of oil pressure.Specification:Busbar structureFour-pieceRemarkBusbar heightH=113~650mm Busbar length1.2~6m Connection structureRiveting without hole Nos Of riveting machineMore than 1 set Housing dimensionL15~20m*3m Control modeManual riveting, automatic reversal Nos of swing-table2~6 pieces Nos of up-down clamping fixtures3~4 pieces Voltage380/400V AC 50/60Hz Power5kW Air source0.6MPa   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
