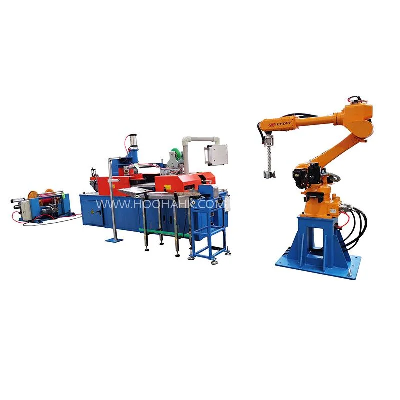

Cable Automatic Coiling and Wrapping Machine with Robotic Stacking ArmApplicationApplication:This equipment is suitable for cable automatic coiling and wrapping, which would be packaged into a coil and can be connected to the cable extrusion machine for linkage use.Main Machine Features:Use PVC/PE film, high-speed coiling and wrappingThe film roll loading method is pneumatic clampingPVC/PE/PP film size:Thickness 0.05-0.07mm * width 40-50mmAdopt touch screen interface (man-machine interface) operation is simple and convenientWire arm type, driven by AC motor, rotating reel smoothlyUse electric method to adjust the size of the holding arm, fast and convenientEquipped with automatic label feeding mechanism, which can automatically pick up a label and send it to the coilWith PLC system, high stability and convenient operation, and 99 sets of different coil packaging specifications can be memorized. When the product specifications are changed, only the memory data needs to be read, and the production can be done immediately without adjustment and testing.There are convenient and stable instruments and switches on the operation panel: touch screen, speed adjustment button, emergency switch, etc. Product DescriptionConfiguration:630-800 Magnetic Powder Type Payoff Stand + Wire Straightening Device + PLC Automatic 1860 Coiling And Wrapping Main Machine 630-800 Magnetic Powder Type Payoff Stand1. Type:No axis cone2. Bobbin Lift:1HP Motor + Drive Screw Lift3. Shaft Diameter:PD 630-800 Parameters: 1240: Coiling Speed800 RPMCoiling SizeOutside diameter is 200-460mm, height is 50-120mm, Inner diameter is 140-220mmApplicable Wire Range1-12mm Power SupplyAC 380 V, three-phase, 50 HZ or customized Operation DirectionLeft or right side(Can be customized)Packaged Coil Weight MAX 35 kg 1860: Coiling Speed700 RPMCoiling SizeOutside diameter is 220-600mm, height is 60-180mm, Inner diameter is 180-250mmApplicable Wire Range5-15mmPower SupplyAC 380 V, three-phase, 50 HZ or customized Operation DirectionLeft or right side(Can be customized)Packaged Coil Weight MAX 50 kg Effective loadMax.50 KGStructuretandemAxis number6 axisRepeated positioning accuracy
