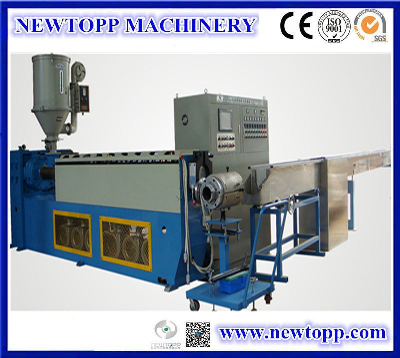

1.5/2.5/4/6 mm2 Cable Extrusion Machines

1.5mm²/2.5mm²/4mm²/6mm²/10mm² CABLE EXTRUSION MACHINES1.Application:Suitable for insulation extrusion for sheathing/jacket of  power wire, computer wire, high-frequency data cable etc.2. Technical Parameters:Model  XJ-70 XJ-80 XJ-90 XJ-120XJ-150Inlet wire Φ1.0-8.0mmΦ2.0-12mmΦ3.0-20mmΦ8.0-35mmΦ12-50mmFinished wireΦ1.5-12mmΦ2.5-14mmΦ3.5-25mmΦ10.0-40mmΦ15-60mmExtrusion material PVC, SR-PVC, PP, PU, PE, HDPEScrew ParametersL/D:26:1, compression ratio: 2.7-3.2, material: 38CrMoAIA Vacuum heating treatment, surface grinding, chromium plating and polishing.Temperature control (Body+crosshead) 5+3 5+36+3 6+3 6+3Main power40HP50HP60HP100HP  200HPMax. output140KG/H 180KG/H240KG/H 360KG/H480KG/HLine speed  400M/min500M/min600M/min800M/min Movable water tank Extension type movable water tank,  movable distance:Max.300mm,overall length:1.5M,  With single segment type air wiper.Fixed water tank U type, 7.5MU type, 10MU type, 10MU type, 15M15MCapstan power  5HP7.5HP7.5HP15HP15HPPay-off typeDouble heads harp type passive pay-off/ doube bobbins shaftless passive or active pay-off , applicable bobbin:Φ500-1250mm,    Gantry type and double column type pay-off, applicable bobbin: Φ1250-2000mm.Take-up typeΦ400-630     Double shaftsΦ400-630      Double shaftsΦ630 -1000Single shaftΦ1250 -2000     Single shaftΦ1250 -2000  Single shaft3. Main components:  ITEM    DESCRIPTION     QTY    (pcs/set)     REMARKS01Active or Passive type pay-off  1 02Tension buffer rack1 03Straightening device1 04Powder machine1option05Main extruder  06Automatric drying hopper and suction machine1 07Numerical control electric cabinet1 08Movable water tank1 09Fixed cooling water tank1 10Horizontal wire accumulator1 11Double wheel belt capstan 1 12Caterpiller 1option13Take-up machine1 14Meter counter1 15Printer 1option16Laser diameter tester1 17Power frequency spark tester1 18LED Electronic displayboard1 4.Machine advantages:1) Used widely:Suitable for insulation extrusion for sheathing/jacket of  power wire, computer wire, high-frequency data cable etc. 2) High output: Optimize the design of screw, screw durable, chromeplate non worn down, non conglutination, color-change quickly, high speed, high output.3) High quality: Extrusion concentricity:over 90%, OD tolerance: +/- 0.03mm;4) Temperature control stability: Adopted SCR power controller with imported high quality temperature control table and copper casting heater, temperature tolerance: +/- 1ºC;5) Easy operation: Exclusive adopted NEWTOPP Teflon specialized touch screen, both provide Chinese/English operation interface, automatic control, easy to operate.5. Machine pictures:6. Abuot us:Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which specializes in developing and manufacturing wire and cable machines, and our main products includes all kind of extrusion production line, single twisting machine, double twisting machine, cantilever stranding/twisting machine, planetary cage type twisting machine, triple-core stranding machine with back-twist, single/double layer wrapping/taping machine and so on; Our products have passed CE certification and SGS audited , and our factory have passed ISO9001 quality management system certification and ISO14001 environmental sytem certification.7. Some of our certificates:8. Packaging and Shipping:9. Our exhibitions:10. FAQ1) Are you a manufacturer or trading company?We are a manufacturer with more than 10 years of R&D and manufacturing experience in the field of cable machinery ; our machines are exported to different countries, such as Italy, Russia, Iran, Japan, India, Korea,Thailand, Malaysia, Vietnam etc, and have received recognition and praise from customers.2) How can we get to your factory to see the machines?Add: No.286 Huai'de road, Humen Town, Dongguan City,Guangdong Province,China. Only 40 minutes by car from Shenzhen Baoan International airport to our factory;Only 2.5 hours by car from Guangzhou Baiyun Airport to our factory; Only 17 minutes by high-speed rail from Guangzhou south station to Humen.                              /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
