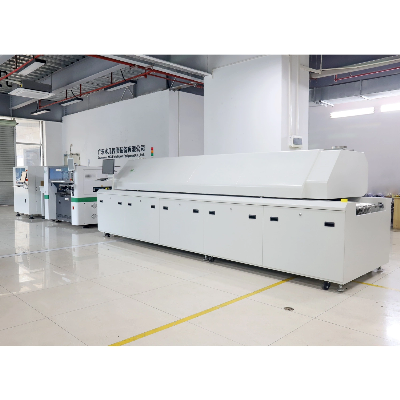

Hot Air Reflow Oven Ml10

ADVANTAGE  DESCRIPTION -The minim m pulse controls the heating device to ensu re the tem peratu re control accuracy of  ± 2'C, and the temperature distribution error in the machine is withi n ± 5·c -The internationally advanced double volute air duct design is adopted. The volute air  conveying system is equipped with an air equalizing device, which ensures uniform air  transmission and high heat exchange efficiency -The independent roller structure and leveling support are adopted to ensu re smooth operation and  accurate speed up to ± 10mm/min -The system has the function of temperatu re curve test, which can detect and analyze the curve  automatically at any time -Delay switch on protection function, uniform cooling after shutdown, effectively preventing  deformation of parts caused by uneven cooling APPLICATION  INDUST RY PCB a nd com ponents SPECIFICATION PCB maximum board width: net belt: 500mm;  guide rail: 400mm Transfer speed: 0-2200mm/min Heating area length: 2960mm-3700mm Heating area quantity: up 8-10 zones , down 8-10 zones Electronic power supply: five lines, three phases, 380V AC  100A Total power: 68KW/38KW Normal working consumption power: 7.5KW-10KW Temperature: indoor temperature - 310 C Temperature control accuracy: ± 1C PCB board temperature distribution deviation:   ± 2C Cooling method: forced cooling Number of cooling zones: 2 Dimension: L5000*W1200*H1450 Weight:1200kg /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
