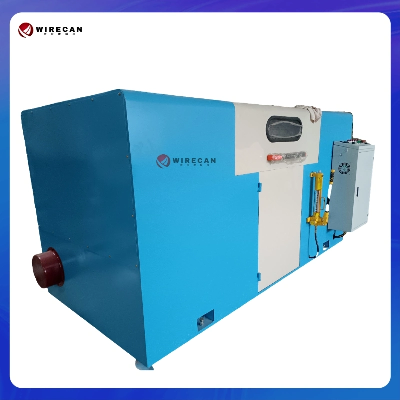

Copper Wire Bunching Twist Machine Multi-Strand Copper Wire Twister

A copper wire bunching twist machine is a specialized piece of equipment used in the wire and cable manufacturing industry to twist together multiple copper wires into a cohesive bunch or strand. Bunching or stranding is a crucial process that enhances the flexibility, strength, and conductivity of copper wires, making them suitable for various applications.Copper wire bunching twist machines are used to produce stranded conductors for a wide range of applications, including power cables, control cables, communication cables, and more. The twisting process enhances the wires' mechanical properties and allows for flexibility while maintaining good electrical conductivity.1. Application:300-630mm high-speed twisting machine is suitable for the stranding of enameled wire and copper wire of HDMI cable, computer traverse cable,head-phone cable,mobile cable,net cable,power cable,pvc wire,etc. 2.Technical parameters: Machine typeWRK-300AWRK-300BWRK-500WRK-630Single wire diameterΦ0.05-0.14mmΦ0.08-0.28mmΦ0.08-0.45mmΦ0.16-0.63mmStranding cross-section area0.005-0.035mm20.035-0.937mm20.05-3.0mm20.8-6.7mm2Stranding pitch1.9-17mm4.36-17mm4.22-39.64mm11.15-60.24mmVolume of loading copper(Max.)30kg30kg250kg400kgTwist arch speed(Max.)3000-4000rpm/min3000-4000rpm/min2200-3000rpm/min1800rpm/minStranding directionS/Z left or right free option   Automatic stop1. Automatic brake for inside and outside wire broken 2. Automatic meter-counting send signal to inform when set meter is reachedBearingMain bearings from Sweden, subsidiary bearings from JapanMain motor power2HP frequency control5HP frequency control5HP frequency control7.5HP frequency controlNoise indexAbout 70dBAbout 75dBAbout 75dBAbout 75dBTake-up shaftΦ250mm,Φ300mmΦ250mm,Φ300mmΦ300mm,Φ400mmΦ500mm,Φ630mmMachine size1620×880×12002050×1090×12502620×1310×14602900×1500×1650Machine weight950kg1600kg2400kg3350kg  2. Key features and functions of a copper wire bunching twist machine include:1. Wire Pay-off System: The machine typically has a wire pay-off system that feeds multiple copper wires from individual spools or bobbins into the twisting area.2. Twisting Section: In the twisting section, the copper wires are twisted together using rotating spindles or bobbins. The machine can adjust the twist pitch and direction according to the desired specifications.3. Tension Control: Proper tension control ensures uniform twisting and prevents wire breakage during the bunching process.4. Speed Control: The machine allows operators to adjust the twisting speed to achieve the desired twist density and overall wire properties.5. Take-up System: After the bunching process, the twisted copper wires are wound onto a spool or bobbin for further processing or packaging.6. Control Panel: The control panel provides operators with the ability to set and monitor various parameters, such as twist settings, tension, and speed.7. Safety Features: Bunching twist machines may include safety interlocks, emergency stop buttons, and protective enclosures to ensure operator safety during operation.8. Customization: The machine can accommodate various wire diameters, numbers of wires, and twisting configurations, making it versatile for different applications.3. Machine main electric brandMotor: Siemens (china) MotorTransducer: American Emerson transducerTemperature controller: Omron Brand PID Smart typeMan-Machine interface: 10.2 inch colorPLC and Control Module: SiemensScrew and Barrel: Produced by jinhu Company.Bearing: Japan NSK or other same quality brandLow voltage electrical parts: Adopts SIEMENS, OMRON, brands,etc.            /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
