All Powerful Wire Harness Processing Terminal Crimping and Insertion Machine

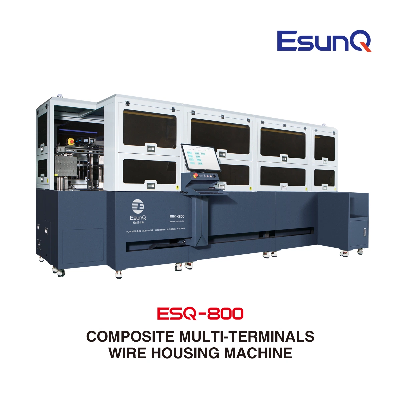

Automatic Combo Terminal Crimping Wire Insertion Machine ESQ-800 is a combo multi terminals wire insertion machine, which independently developed by EsunQ for the automotive field. It can crimp 12 different terminals and thread 6 waterproof plugs, support a variety of different plastic case insertion and 18~28# line number production. It adopts a multi-station open platform, precision servo drive mechanism. The ESQ-800 is certainly a fine machine with great precision and processing ability.Main Feature1. 24" Tuch screen, fully digital and servo control;2. CNC human-computer interaction system;3. an ease production management and built-in pressure monitor Measuring device;4. CCD visual monitoring system (optional) can be used to monitor the whole process of quality control5. Can be embedded in many different types of plastic terminals.Technical DataModelESQ-800Power SupplyAC380V/50-60HzWire (color)30 wires (color)Capacity200 pieces per min, 3 seconds per circleCompress Air Consumption0.5-0.7 Mpa   170NL/minAmbient Humidity30% - 80% RHWire Cuttable Length240-9999mmCut Off Precision (±0.5% x L)Stripping Length0.1-16mm (±0.1mm)Machinable Wire Diameter  AWG#18 - AWG#26Wire Feeding Speed8-12m/s (Max)Crimping Ability2T-3T Servo CrimperCrimping Distance30mm - 40mm Optional)Ambient Temperature5-50ºCMachine SizeL(customized) x W2000 x H1900mmMachine WeightApproximate 2000KgOptional PartsCCD Detection;  Wire Seal StationAbout EsunQ And JMK CompanyEsunQ, is a brand of Shenzhen JMK Electromechanical Co.,LTD, specializing in automotive wire harness processing equipment solutions, R & D and manufacturing. Provide customers with pneumatic card mold, automatic crimping machine, terminal shell inserting machine, FAKRA wire harness. Innovative harness processing equipment such as dynamic production line, Ethernet intelligent production line, intelligent all-in-one machine for new energy high-voltage line, non-standard automation, etc., After years of continuous exploration and progress, EsunQ company has won a number of software copyright, invention and utility model patents, service outlets are distributed in Shenzhen, Suzhou, Huizhou, Qingdao, Hubei and other places. Automobile wire harness processing: pneumatic card mold, automatic crimping machine, terminal shell inserting machine,Fakra Intelligent Production Line SeriesEthernet Intelligent Machining CenterNew Energy High Voltage Production LineWire Crimping Machine • Terminal Insertion • Pneumatic MouldFakra • Ethernet • New Energy High Voltage Production Line • Nonstandard Customization      F A QQ1: What can this machine be used for? A1: ESQ-888 Automatic Terminal Inesertion Machine is perfect wire harness processing equipment, can complete wire cutting, stripping, terminal crimping and terminal insertion into plug by one step.Q2: What is the main application area of this machine? A2: It is widely used in industries with high requirements for wire harness processing, such as automobiles and electrical appliances; accurate, efficient, fully automatic.Q3: How Much Daily Output Of Automatic Crimping Machine? A3: It can do max 5200 pcs / hour, which mean around 62400 pcs per day.Q4: How long will it take for the machine to be completed and shipped after the order is placed? A4: The design and production of our machines are modular, and the corresponding mold can be designed according to the product requirements, which can be delivered in about 15 days; if it is not customized, it will take about 35 days.Q5: What kind of after-sales service can you provide? A5: We promise an one-year warranty (excluding vulnerable parts such as cutters, moulds and drive belts), free accessories and technical support during the warranty period, response time no more than 12 hours, and provide technical services and paid door-to-door maintenance services for life (after the warranty period).  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
