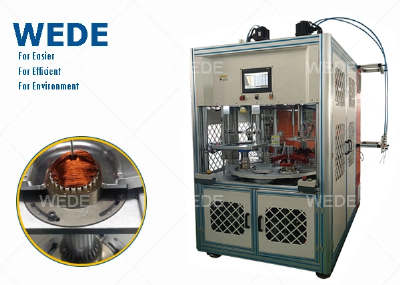

Fully Automatic Combined Stator Coils Winding and Inserting Machine with Wedge

Motor machine WD-2-RQX is to do coils winding and insertion together with wedge to the stator core in the same machine. It is applicable for the single phase and thress phases motor, 2 poles, 4 poles and 6 poles coils like the fan motor, rolling door motor, pump motor etc.   1Core length≤150mm2Max stator OD160mm3160mm30-100mm4Applicable wirecopper wire/aluminum wire5Power supply380V/50Hz6Air pressure:0.4-0.6MPa7Power:14KW8Max speed:2000rpm (normal working at 1800rpm for the thin wire)9Weight:about 3000kgs10Size:2000x1300x2500mmMachine flowchart1.coils winding stations 22.wedge making position3.coils and wedge insertion stationStandalone coils winding machine and standalone coils inserting machine is another option for the combined coils winding and insertion machine.     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
