Hot Sale SMT Wave Soldering Machine Professional China Factory CE ISO

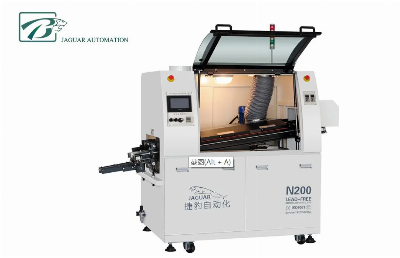

Product DescriptionJAGUAR Lead-free Wave Solder N200Specification:  General specificationBody Dimension;1400*1200*1600mmTotal Dimension:2100*1200*1600mmWeight:Approximately:700kgStart Up Power:Approx 9-11KWNormal running power :3KW/hPower supply :3ph,AC380V/220V 50HZControl systems:Button/Touch screen/PCConveyor systemsDirection: Left to Right ,Front Fix(R to L)Titanium Alloy V shape Finger300mm PCB loading buffer at entranceConveyor speed control method: Motor(Panasonic)Conveyor speed:0-1800mm/minConveyor angle:4-7°PCB Component Height"Top 750mm bottom:20mmSpay Flux SystemsStepper motor drive reciprocating Spray7-UP ST-8 Nozzles The capacity of Flux is MAX 3.2/literFlux auto Feeding (Option)Spary air pressure:12.5L/minHeating systemHeating zones :Bottom 1zones,The Length of heating zones:500mmHeating method:Forces hot air /Heating zones modularization easy to maintenanceSolder potThe capacity of solder pot :180KGTwo wave :Turbulence Wave and Lambda 2nd WaveMaterials :Titanium alloy (Op:Cast iron enamel)Cleaning Finger systems.Introduction1. Automatic conveying power system and auto synchronous board feeding functions.2. Solder Pot peak uses frequency conversing speed adjustment which can independently control the wave height.3. Fluxer system using transverse Japanese spray nozzle, driven by pneumatic cylinder and PLC control, accurate and reliable.4. PLC is used to control the machine, to ensure the reliability and stability of the system.5. Pre-heaters using Infrared heating element, heat radiated efficiently to the circuit board with fast ramp up and fully activating liquid flux.6. Special alloy solder fingers, strengthened double v-groove.7. Solder-motor adopts imported high frequency conversion motor with independent control, stable performance and long lifetime.8. Pre-heater passage with modularized design, meet with environmental protection requirement, safety and convenient to cleanup.9. Preheaters uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.10. Timer startup feature for solder pot, solder melted within 90 minutes.11. Automatic finger cleaner ensure the cleanliness of solder fingers.12. Intelligent monitoring and alarm system ensure the stable performance and operators' safety.  Company ProfileShenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.Our Factory:More than 6000 square meters production plant.More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them36 mechanical assembly technicians12 electrical engineers4 professional QCSuccessful Experience:JAGUAR's customer in 35 countries around the world1. We have been helping customers to build a lot of new factories around the world.2. Training more than 600 experts and technician for customers.3. Became the most reliable Chinese partner for you.Customer and Feedback: Exhibitions:Keep attending more than 10 exhibitions and forums each year.The annual NEPCON and Electronica exhibitions are our regular event.Participate in 3-5 overseas famous exhibitions regularly every year, like:IPC Expo in San Diego, USElectronica in Delhi, India Electron Tech Expo in Mosco, RussiaWIN Exhibition in Istanbul, TurkeyOur Certificates:We passed ISO certificationsWe are IPC member companyWe are National High-tech EnterpriseAll the machines have CE and ROHS certificationsPacking and shipping:What we can do for you?1.  We provide full SMT and THT solution for you2.  We provide core technology with our equipments3.  We provide the most professional tech service4.  We have wealthy experience on SMT and THT factory setup5.  We can solve any question about SMT and THT  Other product recommendations   Shenzhen Jaguar Automation Equipment Co., Ltd ADD:14th Building,West of Furong Industrial park,Shajing town,Bao.anDistrict,Shenzhen,Guangdong,China/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
