Busbar Hipot insulation Test Equipment for Compact Busduct Inspection Machine

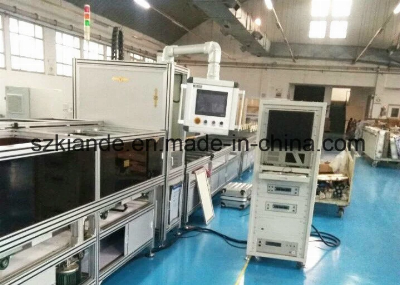

Automatic busbar inspection line,Busduct Testing equipment for high voltage withstanding/insulation resistance etc The automatic busbar inspection line adopts high voltage for busbar voltage and insulation resistance testing.Specification:1. suitable for straight compact busbar 630A~2500A, single layer, length 1.5~6m2. working efficiency: 3min/piece3. length of inspection line: 12mConfigurations:1. One set of automatic patching machine;2. One set of automatic inspection instrument;3. One set of busbar automatic inspection electrical control system Features:1. Automatic end stop structure to align the busbar trunking system;2. Automatic patching machine for busbar of different phases;3. Automatic moving, testing and reporting4. Testing data can be read on computer and printed out;5. Custom and warranty available;  Busbar phase and wire3P5WP4WP3WBusbar length1.2~6mNos of inspection fixtures3 piecesHousing dimensionL13.5(18)*W0.8*H0.8 mControl modePLC or barcodeInspection contentVoltage resistance, insulation, groundingTransformation modeInternet transform, USBVoltage380/415V AC 50/60HzTotal power4kWAir source0.6MPaManual inspection machine1. Application for elbow busbars, flange end busbar, straight busbar less than 1m. 2. All the testing data can be recorded on the control system. Company introductionWe are the company specialized in busbar machine.Busbar machine means busbar production machine or busbar processing machine including mylar sleeve forming machine, busbar assembly machine, busbar riveting machine, busbar testing & inspection machine, busbar packing machine and busbar conveying machine. If you want to know how we use the machine to assemble the busbar, please kindly get the referenced pictures as below. Step 1 Prepare all busbar finished components Step 2 Use related busbar machines to process the busbar  Busbar machine copper processingNeed Kiande's busbar gas-hydraulic copper bar punching machine(This is one-time punching forming. In the market, some busbar manufacturer buys three-in-one busbar machine to bend  and punch copper or aluminum bar. As the bar experiences many procedures, the accuracy is not good which will cause the phase distance too small to cause the short circuit.) Busbar machine mylar sleeve processing machine polyester film forming machineNeed Kiande's mylar/polyester film forming machine. In the market, some busbar manufacturer requests workers to wrap the bar manually. Different workers have different workmanship. If employer meets the inexperienced workers, the wrapping part will have some gaps which will cause the short circuit.   Busbar machine busbar accessory 3M insulation film  Conductor(Copper bar/Aluminum bar) end wrapping  Busbar machine busbar accessory Aluminum profile capped casting capped end Busbar machine Busbar riveting machine  Busbar machine busbar inspection machine busbar testing machine  Busbar machine busbar packing machine busbar packaging machine  Busbar machine busbar accessory rivet the rivet is to connect the profiles instead of bolts more stable and strengthen   Busbar machine busbar accessory joint isolator   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
