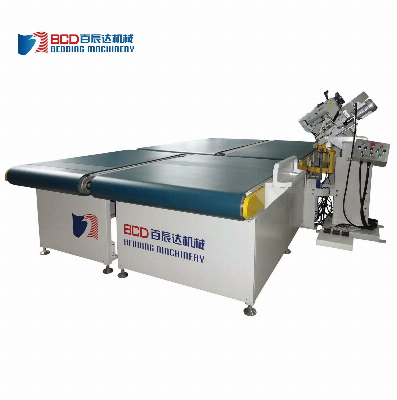

Bwb-4c Auto-Flip Tape Edge Machine

Main application and performance:  This mattress machine is mainly used for sewing mattress. It is more automatic than the previous traditional type. It is characterized as: Sewing head elevation adjustable, sewing head lift adjustable and sewing speed adjustable etc...Work table of this machine is movable, PLC controlling system and artificial intelligence operation. During course of operation, mattress can auto walk, auto turn corner, auto flip, which increase sewing speed. Sewing head can be auto get down, auto decrease speed, auto recover after corner, which improve sewing quality so much and solve problem of traditional corner sewing involution. This machine can sewing the 4 mattress edges continuously, then auto move mattress the regulated position to turn over, whole operation of this machine can be handled by only 1 operator, this machine work efficiency but also lighten labor intensity.not only increase.Technical DataSewing head typeChain StitchSewing head elevation angle25°~60°(adjustable)Work table conveyor speed10~14M/minAvailable mattress thickness100~400mmWork efficiency16~20 mattress/H(depending on skill)Air pressure0.6~0.8MPaTotal motor power2.95KWWork table size3750*1982mm  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
