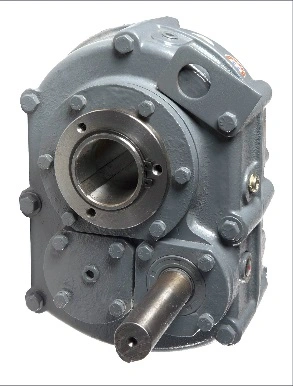

TXT (SMRY) 2-10 Shaft Mounted Gearbox

SMRY Reducer Specification  1 Twin Tapered Output HubA  tapered  bore   in   both   sides   of   the reducer's output hub snugs up against a matching taper on the outer surface of the bushing. Bushing mounting screws pass through the bushingflange into a mounting collar  on  the  hub.  As  the  screws  are tightened,   the    bushing  moves    inward, gripping the driven machine's input shaft tightly and evenly around every pointon its circumference. It is  easy-on, easy-off. All the Output Bushing Bore accord to ANSI2 Precrisio. n High Qua  lity GearingC ompu ter D e s i g n He lical .Gears, Strong Alloy Materials for High Load Capacity, Case Carburized for long life, Ground Profile Crown tooth Profile, InConformance  with  ISO  1328-1997,  98%  Efficiency  for  Per  Stage,  Smooth  Quiet Operation with Several Teeth in Mesh.3 Maximum Capacity Housing DesignClose  Grain  Cast  Iron  Construction,  Excellent  Vibration  Dampening  &  Shock Resistance Features, Precision Bored and Dowelled to Ensure Accurate In-Line Assembly.4 Strong Alloy Steel ShaftsStrong Alloy Steel, Hardened, Ground on Journals, Gear Seatings and Extensions,for Maximum Load and Maximum Torsional Loads. Generous Size ShaftKeys for Shock Loading .5 Use adapter for mount the torque arm, increase the strength of the gear case, the torque armeasy-on and easy-off and reliability, controls position of standard torque arm mounting within recommended limits.6 BackStopsAlternative Parts, anti-run back device, are available on all 15:1 and 25:1 ratio units.7 Bearings and OilsealsBearings are all tapered roll bearings(Except SMRY-2), have long time service time. Oilsealsare Double Lipped Garter Spring Type, Ensuring Effective OilSealing.8 Torque Arm AssemblyFor Easy Adjustment of the Belt. sizeNominal ratio 15:1Nominal ratio 25:1weightlbs Actual RatioMaximum Input  rpmMaximum Ouput  rpmActual RatioMaximum Input  rpmMaximum Ouput  rpmSMRY-214.04197414023.3719948558SMRY-314.87208314024.7521008598SMRY-415.13211814024.38207285139SMRY-515.4192512525.56204480207SMRY-615.34191612525.14201080285SMRY-715.23182712024.84186375462SMRY-815.08180912024.62184775633SMRY-915.12181412025.66192575760size SMRY-2, 3,4,5,6,7,8,9 , ratio 15:1 ,25:1 Company Profilel  The largest manufacturer and exporter of worm gear reducers in Asia. l  Established in 1976, we transformed from a county owned factory to private one in 1996. HANGZHOU SINO-DEUTSCH POWER TRANSMISSION EQUIPMENT CO.,LTD is our new name since 2001. l  We are the first manufacturer of reducers and gearboxes in China who was given export license since year 1993. l  "Fixedstar" brand gearboxes and reducers are the first owner of CHINA TOP BRAND and Most Famous Trade Mark for reducers.First to achieve ISO9001 and CE Certificate among all manufacturers of gearboxes in China.   As a professional manufacturer of worm gearbox and worm gear reducers in China, we mainly produce reduction gearbox,aluminum case worm gearboxes,arc gear cylindrical worm gearboxes, worm gear reducers, in line helical gearboxes, and cyclo drive reducers, etc. These products feature rational structure, stable performance, and reliable quality, and so on. They are widely used in power, mining, metallurgy, building material, chemical, food, printing, ceramic, paper-making, tobacco, and other industries.    We have 600 workers in our factory, which covers 70,000 square meters in Hangzhou. We have been making 2,500 units of reducers everyday since 2012. We are proudly exporting 70% of our products to more than 40 countries all over the word. Our customers come from Italy, Germany, USA, Canada, Spain, UK, Mexico, Brazil, Argentina, Turkey, Singapore and other main industrial countries in the world. 30% of them are OEM made for direct manufacturers of other products.       We warmly welcome customers from other parts of the world to visit us. Seeing is believing. We are very confident that after visiting our facility, you will have confidence on our products. We have the latest automatic equipments and experienced workers to ensure the stable quality and large output. We have the most sophisticated technical and engineering team to support most demanding requirement on standard and OEM products.   Looking forward to meeting you in Hangzhou, China./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
