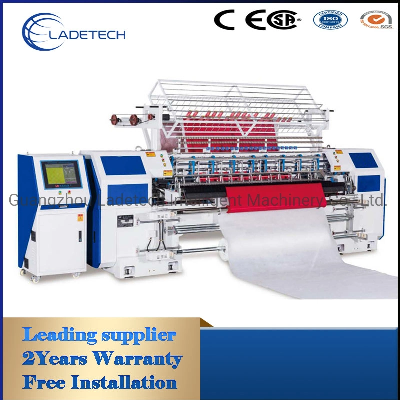

LDT-YS04 High Speed Lock Stitch Quilting MachineProduct Description:1. Advanced computer control system and mechanical manufacturing technology ensure that the noise of the machine is very low.2. The needle row adopts the needle bar frame structure without oiling, thus avoiding the occurrence of oily fabrics, and the structure is firm and not easy to be damaged, and the maintenance cost is low.3. Spindle frequency conversion control device, saddle frame and roller adopt servo drive equipment.4. The drive swing arm of the needle row and the pressure plate is made of special aluminum material and the surface has been specially treated, which is more stable during operation and achieves the effect of less vibration.5. The speed can be adjusted by computer control, the needle speed can reach to 1100 rpm, and the needle stitch can be set arbitrarily from 2-7mm.6. Can make 360°arbitrary quilting and unlimited independent pattern step quilting.7. It adopts advanced needle thread broken detection technology and has the function of automatic shutdown when the thread is broken. Technical SpecificationsModelLDT-YS04 (64")LDT-YS04 (96")LDT-YS04 (128")Dimension3600x1250x1780mm4700x1370x1780mm5590x1370x1780mmWeight2800KG3500KG3800KGQuilting Width1650mm2400mm3300mmSpace Between Needle Bars76.2mm76.2+76.2mm76.2+76.2mmSpace Between Needles25.4mm25.4mm25.4mmQuilting Thickness30mm30mm30mmMax X Stoke Movement203.2mm304.8mm304.8mmQuilting Stitch2-7mm2-7mm2-7mmProduction Speed60-150m/hour60-130m/hour60-130m/hourSpindle Speed500-1100RPM500-1100RPM500-1100RPMVoltage3 Phase,380V, 50/60HZ3 Phase,380V, 50/60HZ3 Phase,380V, 50/60HZTotal Power4.0KW4.5KW5.5KWLoading Pictures:Certificates:About us:Ladetech Mattress Machinery is professional supplier of complete set of foam and mattress machines. With more than 10-year experience in manufacturing mattress machinery, we have been selling our machines to more than 700 mattress manufacturers in China and abroad. Our main machines are bonnell spring machine, pocket spring machine, superlastic spring machine, mattress multineedle chain stitch quilting machine, mattress sewing machine, mattress flanging machine, mattress tape edge machine, mattress packing machine, PU foaming machine, foam cutting machine, pillow machine and so on. Being an all-rounded supplier for foam and mattress plant manufacturers, we not only offer the best quality machines, but also permanent technical support and after sales service for clients all around the world./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
