Automatical Stator Coil Inserting Machine (DLM-5A)

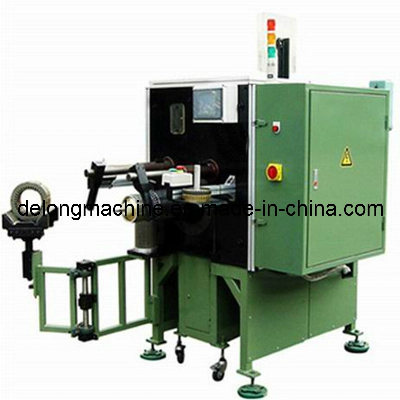

DLM-5A Automatical Stator Coil Inserting MachineHorizontal Type Stator Coil Inserting MachineIt is automatic horizontal coil inserting machine and employs an AC servo motor driven system, an AC frequency conversion speed regulating system, a pneumatic system and a PLC integrated control system. Besides, it is endowed with the functions of auto slot wedge feeding at a fixed length, cutting, forming and inserting into stator with coil and so on. The inserting speed of coil can be set piecewise. Equipped with man-machine interface, it is endowed with the functions of status display, failure warning and various parameter settings, etc, and the advantages of wide application range, high automation degree, easy operation and convenient mold replacement.Description: With the components of paper feed, body, transmission and circuit, the machine is applicable to the automatic insertion of the electric engine stator coil and paper.Features: 1) Capable of automatically pulling the stator coil and paper into the stator slots for one time.2) Capable of modifying the parameters on the touch screen, with the automatic paper feed mechanism capable of fixed-length paper feeding, molding, cutting and inserting into the paper base of the coil inserting mold.3) All welding with the steel plate, the machinery body has wonderful stability; The oblique horizontal structure fits for the ergonomics; With the optional speeds, adjustable patterns and interval paper feeding4) The modes are made of excellent materials, with multiple processing and modeling; The modes can be replaced for the production of various electric engine stators.Application Scope: Electric engines of Y series, electric engines of generators, electric engines of washing machine, air conditioning, water pump, compressors, electric engines of fan, also applicable to the copper wires, aluminium wires and some special wires.Remarks: Subject to the requirements of the customers, it can be customized for special electric engines, with the prices determined according to the production technology of the goods.Our kindly service:Innovational technical team provides completely perfect technical solutions, to satisfy every customer's unique requirement;Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer's all after-sale problems;Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;Multi-communication methods and full time customer service personnel dispel customer's after-sale scruples 24 hours.Delong Machine means Professional, Quality, Service. Technical ParameterDLM-5ALaminated Thickness of Stator50mm-300mmMax Outer Diameter of Stator500mmMin Adaptive Core Bore50mmHighest Slot Full ≤75%Input Three phase 380v/50HzPower 3700WDimension 2700mm×740mm×1600mmWeight About 1800kg/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
