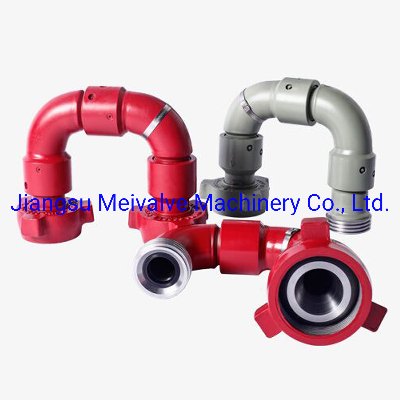

2" 1502 Style 50 Swivel Joint (elbow)

1.Swivel joint is cementing and fracturing equipment High Pressure Fluid Control Products. Hammer union is to change direction and to facilitate the construction of the pipeline connecting the pipe line connection.Widely used in the acidic operating environment (excluding containing CO2, H2S sour gas operating environment) in the high-pressure discharge line, input line, a temporary flow line, well testing, and other high-voltage transmission lines on pipelines. Swivel joint specifications are 1½ "~ 4" in, rated working pressure of 42MPa ~ 105MPa, working temperature -46 ºC ~ 121 ºC.2.The high pressure swivel joint has been widely applied in the condition of acid working, mainly including the high pressure discharge pipe, intake pipe, temporary flow pipe, well-testing pipe and pipes of fluid transportation under other high-pressure conditions;3.The well-designed 1½ "~4" long sweep swivel joint possesses the cold working pressure of 42Mpa~105Mpa (6000psi~15000psi), with 10 different types. It can be rotated by 360° along one direction, two directions or three directions. The company can also provide 90 degree swivel joints with different types and repair kits under the conditions of normal temperature, low temperature and sulfurous gas. Namebuckling sizecold working pressTerminal connection typeBuckle modelModelLong Sweep Swivel Joint1½"2"3 "4 " 42Mpa(6000psi)70Mpa(10000psi)105Mpa(15000psi)screw thread(Tr100×12)screw thread(Tr110×8)10 type20 type30 type40 type50 type60 type70 type80 type90 type100 typefig602fig1002fig1502M×MM×FF ×FRemark: 1.The connection type of swivel joints can be design as users' needs               2."F"-threaded joint,"M"-sphere joint               3.How to place an order:3"×105Mpa(15000psi)-fig1502(F×M)-type10  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
