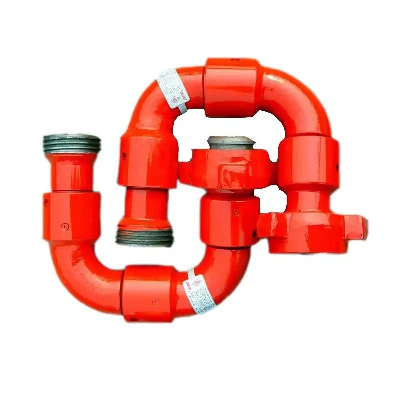

API High Pressure Active Elbow Chiksan Swivel Joints/Long Sweep Swivel Joint

High pressure H2S service active elbow / swivel joint / chiksan swivel joint for oilfieldProduct Overview1.Our Chiksan  swivel joints, with integral ball bearing, are manufactured on the basis of technologies from FMC, USA.2.Various models of swivel joints and their repair kits are available, suitable for normal or low temperature, or H2S environments, with sizes ranging from 1" to 4" and rated WP ranging from 2000psi~20000psi (14MPa~ 140MPa).3.We can supply long and short radius swivel joints. Long radius swivel joints can minimize fluid shock, and has better performance of resistance for scouring and erosion. We also need to use short radius swivel joints for low pressure operation due to limited installation space.4.Patterns of swivel joint are made in NC machine tools, with even wall thickness and longer service life. Wall thickness difference of inner and outer arcs can meet FMC standard.The three-ball-race design can bear heavy load stably, and ensure less vibration with variable load.5.All sizes of swivel joints can be interchanged with FMC equivalent products used in cementing and fracturing equipment. 6.Sealing parts made of synthetic rubber with release hole are fitted with blowout preventing metal ring. When sealing parts leak, pressure will be automatically relieved. Safety performance is enhanced. 7.Usually good lubrication can ensure that swivel joints work normally without much maintenance.  Technical Parameter DescriptionSpecificationModelEnd ConnectionShort radius swivel joints1''x3500psi(25Mpa)1"-1/2x6000psi(42Mpa)1"-1/2x10000psi(70Mpa)2"x6000psi(42Mpa)2"x10000psi(70Mpa)Style 10,50Style 10,50Style 10,50Style 10,50Style 10,50  LP Female Thread LP Female Thread LP Female Thread  1-1/2"Long radius swivel joints 1"-1/2x10000psi(70Mpa)1"-1/2x10000psi(70Mpa) Style 10 Style 50 LP Female LP Female 2"Long radius swivel joints 2"x10000psi(70Mpa) 2"x10000psi(70Mpa) 2"x10000psi(70Mpa) 2"x10000psi(70Mpa) 2"x10000psi(70Mpa) 2"x15000psi(105Mpa) 2"x15000psi(105Mpa) 2"x20000psi(140Mpa) Style 10,20,50 Style 10,50 Style 10,50 Style 10,50,80,100 Style 20,30,60 Style 10,50,80,100 Style 20,30,60 Style 10,50 LP or TBG Female MxF(Tr100x12.7) MxF(Tr100x12) MxF,MxM,FxF MxF(Tr/America) MxM MxF,MxM,FxF MxF(Tr/America)MxM MxF,MxM 3"Long radius swivel joints 3"x10000psi(70Mpa) 3"x10000psi(70Mpa) 3"x10000psi(70Mpa) 3"x15000psi(105Mpa) 3"x15000psi(105Mpa)3"x20000psi(140Mpa) Style 20,50 Style 10,50,80,100 Style 20,30,60 Style 10,50,80,100 Style 20,30,60 Style 10,50 Lp or TBG Female MxF,MxM,FxF MxF(Tr,America) MxM MxF,MxM,FxF MxF,MxM MxF,MxM 4"Long radius swivel joints 4"x6000psi(42Mpa) 4"10000psi(70Mpa) Style 10,50 Style 10,50 MxF,MxM,FxF MxF,MxM,FxFPhotosFactory  CertificatesFAQQ1: What's your packing?A:  Regular packing.Q2: What's your delivery?A:  Normally, about 30-45 days.Q3:  What are the shipping methods?A: Ocean shipment to the port near from you; Air shipment to the shipment near from your company; Door to door service by  international express.Q4:  What about the payment options? A: In general, we accept T/T. Q5:  When can I get the price?A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in  your  email so that we will detail with your inquiry priority. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
