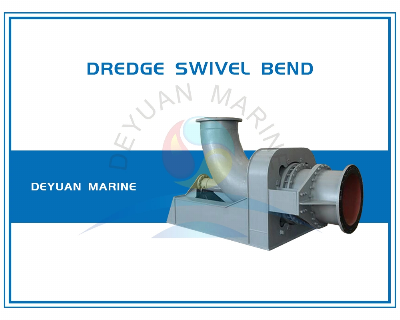

Dredger Swivel Bend / Dredger Ball Swivel / Dredger Swivel Joint / Swivel Ball JointDEYUAN MARINE's dredge swivel bends provide flexibility between a cutter dredger and a floating pipeline. The bend adjusts easily to the dredger s swinging motion. The swivel bends are typically available with a pressure rating in the range of 10 to 30 bar and for internal pipe-size diameters in the range of 350 to 1100mm. The standard dredge swivel bend is fitted with a large bearing between the bends. To take on the forces exerted by the floating pipeline, a pivot with a self-lubricating bush is fitted on the lower bend. This pivot prevents any torque from reaching the swivel. The welded steel foundation distributes the load from the floating pipeline to the hull of the dredge. The swivel bend is fitted with a replaceable rubber seal, which runs on a stainless steel contact surface. The rugged design of the swivel bend and the large radius of the pipe bends keep maintenance to minimum. Features:Larger rotation angleLong working life in abrasive conditionsFull range to suit all needsEasily adjust to the orientation of the dredgersNote:DEYUAN MARIN dredge swivel bend can be customized according to your special requests.If you have any question,please feel free to contact us directly.DEYUAN MARINE Components is specially for cutter suction dredgers.We provides varieties of components,such as dredge cutter head,dredge cutter teeth,dredge cutter ladder front part,dredge cutter ladder gearbox,dredge spud,dredge spud carrier,dredge spud clamp,dredge pulleys for,dredge side wire block,dredge swivel bend,dredge cutter suction mouth,etc. Our components can be customized according to your special requirements.For any more information,welcome to contact us directly.DEYUAN MARINE will provide high quality products and excellent service for you. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
