3 Point Disc Plow for small compact tractor Function of DISC HARROW LF-BQX Series Light Duty Offset Disc Harrow is designed specially for small land with steep slopes that is difficult to harrow. The disc harrow is used for breaking up the ground, shattering soil lumps and mixing crop residues into soil as green manures. This harrow is mounted to tractor by 3 point linkage, the whole structure is enough strong to perform excellently in steep land with high speed. ModelLF-BQX-1.1LF-BQX-1.3LF-BQX-1.5LF-BQX-1.7LF-BQX-1.9LF-BQX-2.3Working width(m)1.11.31.51.71.92.3Working depth(mm)80-120No.of disc(pcs)121416182024Disc Diameter(mm)460460460460460460Weight(kg)200220240260310360Tractor power(hp)12-2015-2525-3530-3535-4550-60Linkage3 point linkage Cat IProduct details: • 1. 28×28 square harrow shaft used, 200mm spacing between discs • 2. High Carbon disc blade hardness: 38-44 HRC, assuring the toughness and wear ability of disc blade. • 3. Compact harrow structure, convenient for assembly and adjustment • 4. High harrowing speed and efficiency when three point mounted with tractor rear • 5. Especially performing well in rugged land with more steep slopes • 6. Disc harrow adopting using bearing combinations with a grease filling hole on it, keeping sand or soil from going into bearing to cause break down and maintaining conveniently Company ProfileChangzhou LEFA Industry & Trade Co., Ltd., is a professional manufacturer and exporter of whole set of agriculture machines and garden tools. Our company was established since 2003 with Hanma Industry Company. Our main products include rotovator, flail mower, finishing mower, topper mower, wood chipper, plow, cultivator, potato harvester/ planter and Japanese tractor parts, etc. Due to our super International quality standard and rapid & excellent after-sales service, LEFA machines are greatly popular in various markets around the world, and already reached to Europe, North America, South America, Australia, almost covers 80 countries in World. LEFA always believe that we will take better farming life to you by top-quality laser cutting machine & CNC bending machine & professional paint-spraying & strong welding. PROFESSIONAL PRODUCTION:1.Professional team with rich experience 2.Powerful factory strength with CE certification3.Best after-sales servicePacking & ShippingPackaging Detail: Iron pallet or wooden cases Delivery Detail: By sea or By air 1. Waterproof packing with the international export standard by 20ft, 40ftcontainer. Wooden Case or Iron Pallet. 2. The whole set of machines size are large as normal, so we will use Waterproof materials to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity. Machine videos in YOUTOBEhttps://youtu.be/UCDWDR3Pjrg LEFA company video https://youtu.be/Bc8UzmpHiyU EFD flail mower https://cnlefa.en.made-in-china.com EFDL SIDE MOWERS https://cnlefa.en.made-in-china.com EFGL SIDE MOWERS https://cnlefa.en.made-in-china.com FM FINISHING MOWERS https://cnlefa.en.made-in-china.com TM TOPPER MOWERS https://cnlefa.en.made-in-china.com RT ROTARY TILLERS https://youtu.be/d3H1-yXUImc AP-90 POTATO HARVESTER https://youtu.be/AAkgnV_bY80 LF-PT32 POTATO PLANTER https://youtu.be/66geQQOUTLY wood chipper BX-42 https://youtu.be/iIVOwCTCl_c HAY BALER FAQ:Q1. How to buy 3 point rotary tiller? Inquiry ---------> Quotation -------->Price reasonable ------->Check with specification ----->Proforma Invoice sent ------------>Payment made -------> Producing the items ------->Product shipment -----------> Customer confirm Q2.How long is the delivery date for agriculture machinery cultivator? A:In general, we can ship the goods within 30-45 days after receiving your payment. Of course, it also depends on your quantity. Q3. How can I get to your factory to buy tractor cultivator? A:We are located in Changzhou, only one hour's distance to Shanghai or Nanjing. You can fly to Shanghai/Nanjing/Changzhou Airport , the transportation is very convenient Q4.Do you have stock for rotary tiller? A:In general, we have some stock, while if you need a bulk order, we still need time to produce it. Of course, we will inform all details you before your payment. Q5: What's your main products? A: Our products are covered almost all farm machines and Japanese tractors parts, we can meet your any demands. Q6. What is your terms of payment? A: T/T, L/C, Paypal, Western Union /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

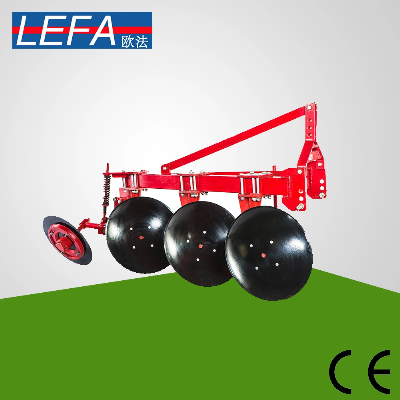

Related products about Farm Machinery Three Disc Plough Harrow for Sale
-
