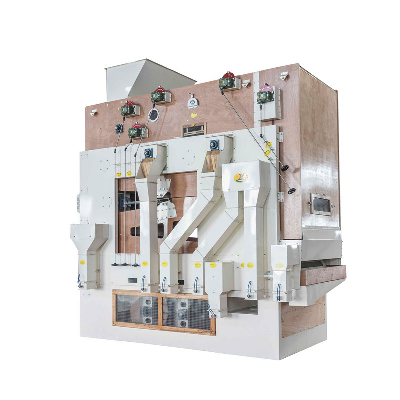

Wheat Soybean Maize Fine Seed Cleaner

Wheat Soybean Maize Fine Seed CleanerIntroduction of wheat, soybean, maize fine seed cleanerThe 5X-12 wheat, soybean, maize fine seed cleaner is a universal machine well suited for pre- and fine cleaning many different species of grain and seeds.The standard design of the machine is provided with both pre- and after suction units.Quick screen changing from pre-cleaning into fine cleaning by the operator serves to optimize the cleaning tasks.The 5X-12 fine air screen seed cleaner is a very competitive machine, both as regards price and capacity as well as function and operation.The technology of the machine is thoroughly tested, which can be documented by many references all over the world.Parameter of wheat, soybean, maize fine seed cleanerModel5X-55X-12Dimension(L×W×H)3200×1920×3600 mm3790×1940×4060 mmOverall weight3250 kg3600 kgRated capacity5 t/h12 t/hOverall air volume8200 m312520 m3External air blower4-72N0-6A, 7.5 kW4-79N0-6A, 5.5kwVibration sieve motor(gear motor)2.2 kW2.2 kWBack lifting system motor3.0 kW3.0 kWFeeding motor1.5 kW0.75kwTotal Power6.7 kW11.45kwAir Blower Typecentrifuge air blowerTop air blower Rotary speed4-79NO6A,1400 r/minBack lifting air blower Rotary speed100~1000 r/minScreen Typepiercing screenScreen Dimension (L×W)800×1250 mmFrequency300(80~400) times/minAmplitude30 mmLayers and number4 layers,7 pieces5 layers,15 piecesPhotos of wheat, soybean, maize fine seed cleaner        /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
